PROTOMONT (V) NTSKCGECWOEU 3–6 kV Underground Coal Cutter Cable – Built for Australia’s Toughest Underground Mining Conditions
Australia’s underground coal industry operates in some of the harshest production environments in the world. From the deep longwall panels of Queensland’s Bowen Basin to the confined underground roadways of New South Wales, mining equipment is constantly exposed to abrasion, moisture, torsional stress, vibration, and heavy mechanical movement.
In these environments, cable failure is never a minor issue. A damaged underground shearer cable can stop production, interrupt longwall operations, create safety risks, and trigger expensive downtime that costs thousands of dollars per hour.
That is why Australian underground mines increasingly rely on purpose-built heavy-duty cable handler cables engineered specifically for dynamic mining applications.
The PROTOMONT (V) NTSKCGECWOEU 3–6 kV underground coal cutter cable is designed precisely for these demanding operating conditions. Developed for underground coal cutting machines, longwall shearers, and mobile mining equipment operating with cable protection chains, this medium voltage mining cable combines:
Exceptional flexibility
High tensile strength
Advanced torsional stability
Superior abrasion resistance
Reliable medium-voltage electrical performance
Long service life in aggressive underground conditions
For mining engineers, procurement managers, electrical supervisors, and OEM equipment manufacturers across Australia, selecting the correct underground trailing cable is critical to maintaining safe and productive operations.
This article explores how the PROTOMONT (V) NTSKCGECWOEU 3–6 kV cable performs in real underground mining applications, why its construction matters, and how it helps reduce downtime in Australian coal mining operations.
Why Underground Coal Mining Cables Fail in Australia
Australia’s underground mining sector presents unique challenges for flexible trailing and shearer cables.
Unlike static power cables, underground mining cables are subjected to constant mechanical movement during operation. In longwall mining systems, cables repeatedly bend, twist, flex, drag, and accelerate while following heavy mining equipment through confined roadways.
Common causes of cable failure in Australian underground mines include:
Excessive torsional stress
Crushing from machinery
Abrasion against roadway surfaces
Water ingress
Heat build-up
Incorrect bending radius
Repeated flexing cycles
High tensile loading
Cable twisting in chain systems
Impact damage from rock and debris
These problems become even more severe in high-production longwall operations where shearers operate continuously under demanding production schedules.
A standard industrial flexible cable is simply not designed for these conditions.
This is where specialised underground coal cutter cables become essential.
The PROTOMONT (V) NTSKCGECWOEU 3–6 kV cable is specifically engineered for cable handler systems where the protection chain absorbs tensile forces while the cable maintains flexibility and electrical reliability during continuous machine movement.
What Is PROTOMONT (V) NTSKCGECWOEU 3–6 kV Cable?
PROTOMONT (V) NTSKCGECWOEU is a medium-voltage underground coal cutter cable developed for chain-operated mining applications.
It is primarily used as a power supply connection cable for:
Longwall shearers
Coal cutting machines
Continuous miners
Underground mobile mining equipment
Development mining equipment
Cable handler systems
Underground chain-operated machinery
The cable is designed for use in cable protection chains trailing behind mining equipment. These chain systems absorb the tensile stress generated during operation while protecting the cable from excessive mechanical strain.
Its design combines:
Very finely stranded tinned copper conductors
EPR rubber insulation
Semiconductive screening layers
Steel and tinned copper reinforcement
Heavy-duty PCP rubber outer sheath
Double concentric control and PE conductors
The result is a highly flexible underground mining cable capable of operating reliably in confined, wet, abrasive, and mechanically demanding environments.
Engineered Specifically for Cable Handler Systems
One of the defining features of this cable is its suitability for cable protection chain applications.
In underground longwall mining, cable handler systems are critical because they:
Control cable movement
Reduce direct tensile loading
Minimise cable twisting
Prevent excessive dragging
Improve cable life expectancy
Protect the cable from roadway damage
The PROTOMONT (V) NTSKCGECWOEU cable is designed specifically for these operating systems.
Its construction allows the cable to:
Flex repeatedly without conductor fatigue
Resist torsional stress
Maintain electrical stability during movement
Handle frequent directional changes
Survive continuous dynamic loading cycles
This makes it highly suitable for Australian longwall mining operations where equipment movement is continuous and production demands are extremely high.

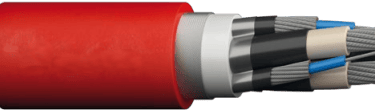

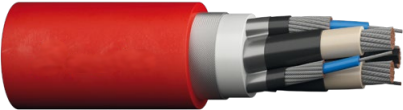

Cable Construction Designed for Underground Mining Reliability
The performance of any underground mining cable depends heavily on its internal construction.
The PROTOMONT (V) NTSKCGECWOEU cable uses a specialised multilayer construction system engineered for underground coal mining applications.
1. Very Finely Stranded Tinned Copper Conductors
The cable uses Class FS very finely stranded tinned copper conductors.
This provides:
Excellent flexibility
Reduced conductor fatigue
Improved bending performance
Better resistance to repeated movement
Enhanced corrosion resistance underground
Tinned copper conductors are particularly important in underground mines where moisture, humidity, and chemically aggressive environments can accelerate conductor degradation.
2. EPR Rubber Insulation
The main cores are insulated using specialised EPR rubber compounds.
Benefits include:
High dielectric strength
Excellent thermal performance
Improved flexibility
Resistance to mechanical stress
Reliable medium-voltage insulation performance
EPR insulation is widely preferred in underground mining because it performs well under continuous flexing and dynamic mechanical stress.
3. Semiconductive Easy-Strip Layer
The cable incorporates semiconductive NBR easy-strip layers.
This improves:
Electrical field control
Screening performance
Easier termination preparation
Faster maintenance work underground
More reliable jointing and repairs
For underground mining electricians, easier cable preparation can significantly reduce maintenance time during shutdowns.
4. Double Concentric Control and PE Conductors
The cable includes double concentric control and protective earth conductors located in the outer interstices.
These conductors support:
Monitoring systems
Control functions
Earthing performance
Electrical safety
Equipment protection
This construction improves reliability in underground hazardous environments.
5. Steel and Tinned Copper Reinforcement
One of the key mechanical advantages of this cable is its steel and tinned copper wire spinning reinforcement system.
This reinforcement helps the cable withstand:
Mechanical impact
Abrasion
Dynamic flexing
Torsional movement
Underground dragging conditions
In Australian underground mines where cables are exposed to rough roadway conditions and heavy machinery, this reinforcement layer significantly improves service life.
6. Heavy-Duty PCP Outer Sheath
The outer sheath uses robust polychloroprene rubber compounds designed for harsh mining conditions.
The sheath offers resistance to:
Oil
Abrasion
Ozone
UV exposure
Mechanical wear
Underground moisture
The result is a cable capable of surviving prolonged exposure to underground coal mining environments.
Electrical Performance and Voltage Capability
The PROTOMONT (V) NTSKCGECWOEU cable is designed for medium-voltage underground mining applications operating between 3–6 kV.
Key electrical characteristics include:
Rated voltage: 3.6/6 kV
Test voltage: 6 kV
AC test voltage for control cores: 2 kV
Maximum conductor temperature: 90°C
Short-circuit conductor temperature: 250°C
These specifications make the cable suitable for high-demand underground mining equipment operating continuously under production load.
Mechanical Performance for Dynamic Mining Applications
Mechanical performance is often the most critical factor in underground mining cable selection.
This cable is engineered specifically for dynamic mining applications involving:
Continuous flexing
Torsional movement
Chain operation
Underground dragging
Frequent directional changes
Torsional Resistance
The cable supports torsional stress of:
±25° per metre
This is critical in longwall shearer systems where cables constantly twist during machine movement.
Tensile Strength
Permanent tensile strength:
15 N/mm²
This helps the cable withstand the dynamic stresses generated during underground operation.
Bending Performance
Recommended bending radius:
2.3 × cable diameter at 5 N/mm²
20 × cable diameter for S-type directional changes
Correct bending practices are essential for maximising service life underground.
Temperature Resistance for Australian Mining Conditions
Australian underground coal mines can experience severe operating temperatures combined with humidity and confined ventilation conditions.
The cable is designed for:
Fixed Installation
Minimum temperature: -40°C
Maximum temperature: +80°C
Flexible Operation
Minimum temperature: -20°C
Maximum temperature: +60°C
This operating range provides reliable performance in both cold-storage handling conditions and high-temperature underground mining environments.
Flame Retardancy and Underground Mining Safety
Safety is critical in underground coal mining.
The cable complies with recognised flame-retardant standards designed for mining environments.
Features include:
Flame-retardant construction
Oil resistance
UV resistance
Ozone resistance
Enhanced mechanical protection
These characteristics help improve operational safety in underground hazardous areas.
Real-World Australian Mining Applications
Bowen Basin Longwall Operations – Queensland
Queensland’s Bowen Basin contains some of Australia’s largest underground coal operations.
Longwall systems in this region operate under extremely demanding production conditions involving:
High production tonnage
Continuous shearer movement
Long cable travel distances
Wet underground conditions
Heavy mechanical loading
Cable handler systems used in Bowen Basin operations require highly flexible and mechanically robust medium-voltage cables capable of surviving constant movement cycles.
In these environments, heavy-duty chain-operated mining cables are valued for:
Reduced cable twisting
Improved abrasion resistance
Longer operational lifespan
Lower maintenance frequency
Reduced production stoppages
Mining crews working in Queensland underground operations typically prioritise cable durability because downtime on longwall systems can rapidly escalate operating costs.
Hunter Valley Underground Coal Mines – New South Wales
The Hunter Valley region in NSW includes several high-output underground coal operations using longwall and continuous mining systems.
Underground roadway conditions in this region often include:
Abrasive floor conditions
Moisture exposure
Tight cable handling areas
Heavy equipment traffic
Continuous operational cycles
In these mines, underground shearer cables must tolerate repeated bending and torsional movement while maintaining stable electrical performance.
Heavy-duty flexible mining cables with reinforced sheath systems are commonly preferred because they help minimise:
Outer sheath cracking
Internal conductor fatigue
Premature cable failures
Downtime caused by damaged trailing cables
Illawarra Underground Mining Conditions
The Illawarra coal region presents additional challenges due to:
Confined underground spaces
Steep roadway conditions
Moisture-heavy environments
Frequent directional cable movement
Mining operators in this region often prioritise cable flexibility and torsional stability to reduce stress on cable handler systems.
Flexible medium-voltage chain-operation cables help maintain operational continuity in these difficult underground conditions.
Mining Ports and Bulk Material Handling Applications
Although primarily designed for underground coal mining, cables with similar heavy-duty mechanical characteristics are also relevant in Australian port operations.
Bulk export terminals handling coal and minerals — particularly in Queensland and Western Australia — rely heavily on mobile equipment exposed to:
Constant movement
Abrasion
Salt-laden air
Heavy-duty reeling systems
Dynamic flexing
Applications can include:
Stacker reclaimers
Ship loaders
Mobile conveyors
Reeling drums
Cable festoon systems
Ports such as:
Hay Point
Dalrymple Bay
Port Kembla
Newcastle Coal Infrastructure Group terminals
all operate equipment requiring highly durable flexible power cables capable of surviving aggressive operating conditions.
The engineering principles used in underground chain-operation mining cables are increasingly relevant in modern automated bulk handling infrastructure.
Why Australian Mining Engineers Prioritise Cable Flexibility
Flexibility is not just about easier handling.
In underground mining, flexibility directly affects:
Cable lifespan
Mechanical fatigue resistance
Electrical reliability
Equipment uptime
Maintenance frequency
Poor cable flexibility can lead to:
Conductor breakage
Internal insulation damage
Excessive sheath cracking
Increased torsional loading
Premature cable failure
The very finely stranded Class FS copper conductors used in this cable help maintain flexibility even under continuous underground movement cycles.
This is especially important for longwall systems where cables experience constant flexing during production.
How Cable Handler Systems Extend Service Life
Cable handler systems play a major role in underground cable protection.
These systems help:
Control cable movement
Prevent excessive drag
Reduce tensile stress
Maintain bending radii
Improve cable alignment
Minimise roadway damage
However, even the best cable handler system cannot compensate for poor cable construction.
The cable itself must be engineered for dynamic mining conditions.
That is why mining operators increasingly select purpose-built underground chain-operation cables instead of adapting general industrial flexible cables.
Installation Best Practices for Underground Mining Cables
Even premium underground mining cables require correct installation to achieve maximum service life.
Recommended practices include:
Maintain Proper Bending Radius
Avoid excessive bending beyond manufacturer recommendations.
Prevent Twisting During Installation
Improper installation can introduce torsional stress before operation even begins.
Protect Against Crushing
Avoid routing cables where machinery may drive directly over them.
Monitor Cable Handler Alignment
Poor chain alignment increases cable wear.
Conduct Regular Inspection
Routine inspection helps identify:
Sheath damage
Abrasion points
Twisting issues
Heat damage
Mechanical wear
Early detection reduces major operational failures.
SEO Keywords Driving Australian Mining Searches
Mining procurement managers and engineers increasingly search online for highly specific cable solutions.
This article targets industry-relevant search intent including:
PROTOMONT NTSKCGECWOEU 6 kV
Underground coal cutter cable Australia
Longwall shearer cable
Underground mining trailing cable
Cable handler mining cable Queensland
6 kV underground trailing cable NSW
Flexible medium voltage mining cable
Underground chain operation cable
Longwall mining cable Australia
Heavy-duty underground mining cable
These keywords align with real procurement and engineering search behaviour in Australia’s mining sector.
Why Medium Voltage Mining Cable Selection Matters
Selecting the wrong cable can create major operational consequences.
A low-quality cable may lead to:
Frequent maintenance
Production downtime
Increased safety risk
Premature replacement
Higher total operating costs
By contrast, purpose-built underground mining cables can improve:
Operational uptime
Equipment reliability
Cable service life
Maintenance efficiency
Long-term cost control
In high-output underground coal operations, reliability is often more valuable than initial purchase price.
Future Trends in Australian Underground Mining Cables
Australian mining operations are becoming increasingly automated and electrified.
Future underground mining systems are expected to involve:
Higher production rates
Faster equipment movement
Increased automation
Smart monitoring systems
Electrified fleets
Advanced longwall technology
These trends will place even greater demands on mining cable systems.
Future cable requirements will likely focus on:
Improved flexibility
Higher voltage capability
Reduced cable weight
Enhanced monitoring integration
Greater torsional resistance
Longer service life
Heavy-duty flexible medium-voltage mining cables will remain a critical component of underground mining infrastructure.
Choosing the Right Underground Mining Cable Supplier in Australia
When sourcing underground mining cables in Australia, buyers typically evaluate suppliers based on:
Technical support capability
Mining application experience
Compliance understanding
Lead times
Custom manufacturing options
Cable durability
After-sales support
Availability for urgent shutdown requirements
For underground coal mining projects, selecting a supplier familiar with Australian mining conditions is essential.
Expert Summary
The PROTOMONT (V) NTSKCGECWOEU 3–6 kV underground coal cutter cable is engineered specifically for the demanding realities of underground coal mining operations.
Its specialised construction — combining very finely stranded tinned copper conductors, EPR insulation, semiconductive screening, steel and copper reinforcement, and a heavy-duty PCP outer sheath — delivers the flexibility, torsional stability, and mechanical durability required for cable handler systems and longwall mining applications.
For Australian underground coal operations in Queensland, New South Wales, and other major mining regions, this type of medium-voltage chain-operation cable helps reduce downtime, improve reliability, and extend operational service life under severe underground conditions.
As Australian mining operations continue moving toward higher productivity, increased automation, and more demanding operational cycles, purpose-built flexible mining cables will remain essential for maintaining safe and efficient underground production.
How to Reach Us
Get in Touch
SiteMap
Product Catalogue
Festoon Cable
Shore Power Cable
Scan to add us on WeChat
