Australia’s underground mining industry demands some of the most mechanically durable flexible mining cables in the world. From the longwall coal operations of Queensland’s Bowen Basin to underground development headings in New South Wales and hard-rock mining operations in Western Australia, mining cables are continuously exposed to harsh operating conditions that quickly destroy ordinary industrial cables.

In underground mining, cable performance is not simply about electrical conductivity. A mining cable must survive:

• Continuous dragging over rough roadway surfaces

• High-speed machine movement

• Abrasion from rock and coal

• Heavy torsional stress

• Repeated flexing cycles

• Crushing forces

• Moisture ingress

• Mechanical impact

• Long-distance free trailing behind mobile equipment

For underground coal shearers, roadheaders, Tunnel Boring Machines (TBMs), and Load-Haul-Dump (LHD) machines operating without cable handler systems, the cable itself becomes one of the most critical mechanical components in the entire mining operation.

This is where the PROTOMONT (Z) NSSHKCGEOEU 1 kV heavy-duty free trailing mining cable is specifically engineered to perform.

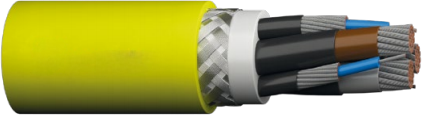

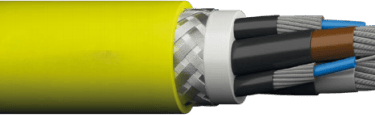

Designed as an extra-rugged low-voltage underground mining cable, the PROTOMONT (Z) NSSHKCGEOEU combines:

• Very finely stranded tinned copper conductors

• EPR rubber insulation

• Double-concentric control and PE conductors

• Heavy galvanized steel braid reinforcement

• PCP PROTOFIRM outer sheath

• Exceptional tensile strength

• Extremely low torsional behaviour

The result is a mining cable engineered specifically for long-distance free trailing applications where the cable is dragged directly behind high-movement underground machinery without the protection of a cable chain system.

For Australian mining engineers, underground electrical teams, procurement managers, and OEM equipment suppliers, this type of cable offers a specialised solution for reducing downtime and improving operational reliability in demanding underground environments.

This article explores the cable’s construction, mechanical advantages, real-world mining applications across Australia, and why heavy-duty free trailing mining cables are increasingly important in modern underground operations.

Why Free Trailing Mining Cables Face Extreme Mechanical Stress

Unlike festoon or chain-protected cables, free trailing mining cables operate with far less mechanical protection.

In free trailing applications, the cable is dragged directly behind the machine across the roadway floor, often over considerable distances.

This creates severe operating stresses including:

• Constant abrasion

• Twisting

• Dragging friction

• Crushing risk

• Snagging

• High tensile loading

• Rock impact

• Dynamic acceleration forces

In Australian underground mines, these problems become even more severe because production equipment typically operates under high-utilisation schedules.

Modern longwall shearers and underground development equipment often run continuously for extended shifts with minimal downtime.

Under these conditions, ordinary flexible cables frequently fail due to:

• Sheath cracking

• Internal conductor fatigue

• Excessive twisting

• Braid separation

• Abrasion wear

• Conductor breakage

• Electrical insulation failure

That is why underground mining operations require purpose-built heavy-duty trailing cables specifically engineered for free trailing environments.

What Is PROTOMONT (Z) NSSHKCGEOEU 1 kV Cable?

PROTOMONT (Z) NSSHKCGEOEU 1 kV is a heavy-duty free trailing mining cable designed for underground mobile equipment operating in severe mechanical conditions.

The cable is specifically engineered for:

• Longwall coal shearers

• Continuous miners

• Roadheaders

• Tunnel Boring Machines (TBMs)

• LHD scoops

• Underground mobile mining systems

• Development mining machinery

Unlike cable handler applications where tensile loads are absorbed by protection chains, this cable is designed to withstand direct trailing forces during operation.

Its reinforced construction provides:

• High tensile strength

• Excellent abrasion resistance

• Minimal torsional movement

• Reliable flexibility

• Improved resistance to mechanical damage

This makes it particularly suitable for Australian underground coal mines where long-distance trailing is common.

The Importance of Low Torsion in Underground Mining Cables

One of the most important characteristics of the PROTOMONT (Z) NSSHKCGEOEU cable is its extremely low torsional behaviour.

The cable is engineered for:

• ±10°/m torsional stress

This is exceptionally low for a heavy-duty trailing mining cable.

Why does this matter?

Because excessive cable twisting is one of the primary causes of underground mining cable failure.

When a cable twists excessively during operation, it can lead to:

• Internal conductor stress

• Insulation fatigue

• Sheath separation

• Cable corkscrewing

• Snagging hazards

• Accelerated wear

• Premature electrical failure

In longwall shearer operations where equipment repeatedly changes direction, torsional stability is critical.

Australian underground operators frequently prioritise low-torsion mining cables because they help reduce:

• Cable tangling

• Mechanical stress

• Maintenance interruptions

• Unplanned production stoppages

Galvanized Steel Braiding – Built for High Tensile Underground Applications

A defining feature of this cable is its galvanized steel braid reinforcement system.

The steel braid provides:

• Exceptional tensile strength

• Mechanical reinforcement

• Improved impact resistance

• Enhanced abrasion protection

• Greater structural stability

The cable offers:

• Permanent tensile strength of 40 N/mm²

• Minimum breaking load of 45 kN

These characteristics make it one of the strongest free trailing underground mining cables in its voltage class.

In Australian underground mines where cables may trail hundreds of metres behind machinery, this reinforcement is essential.

The steel braid helps prevent:

• Stretch damage

• Excessive elongation

• Conductor strain

• Mechanical collapse under load

For mining operations involving heavy-duty free trailing conditions, steel braid reinforcement significantly improves cable durability and operational lifespan.

Designed for Long-Distance Free Trailing

One of the biggest challenges in underground mining is long-distance trailing.

As mining faces become longer and production equipment becomes more mobile, cables must travel further behind machines while maintaining flexibility and electrical integrity.

The PROTOMONT (Z) NSSHKCGEOEU cable is engineered specifically for:

• Long-distance trailing

• High travel speed operation

• Continuous movement

• Severe underground conditions

The cable supports travel speeds up to:

• 150 m/min

This makes it suitable for high-productivity mining systems operating under demanding production schedules.

Cable Construction Features for Underground Reliability

The internal construction of the cable plays a major role in its underground performance.

Every component is engineered for mechanical durability and operational reliability.

1. Very Finely Stranded Tinned Copper Conductors

The cable uses Class FS very finely stranded tinned copper conductors.

Benefits include:

• Excellent flexibility

• Reduced conductor fatigue

• Improved movement performance

• Better bending characteristics

• Enhanced corrosion resistance

Tinned copper is particularly valuable in underground mining because of the constant presence of moisture and chemically aggressive environments.

2. EPR Rubber Insulation

The cable uses specialised EPR rubber insulation compounds designed for dynamic mining applications.

EPR insulation offers:

• High dielectric strength

• Flexibility under movement

• Thermal resistance

• Mechanical durability

• Reliable electrical performance

This insulation system performs particularly well under repeated flexing cycles common in underground trailing operations.

3. Semiconductive Layers

The semiconductive layer system improves electrical stability and field distribution.

Benefits include:

• Better electrical stress control

• Easier cable preparation

• Improved maintenance efficiency

• More reliable terminations

For underground electrical teams, this helps reduce repair and maintenance time during shutdowns.

4. Double-Concentric Control and PE Conductors

The cable incorporates double-concentric control and protective earth conductors located within the outer interstices.

These conductors support:

• Monitoring systems

• Control circuits

• Protective earthing

• Operational safety

• Equipment reliability

This design improves performance in underground hazardous environments.

5. PCP PROTOFIRM Outer Sheath

The outer sheath uses a heavy-duty PCP rubber compound designed for severe underground conditions.

The sheath provides resistance to:

• Abrasion

• Oil

• Mechanical impact

• Ozone

• UV exposure

• Underground moisture

In Australian underground coal mines where cables drag directly over rough roadway surfaces, sheath durability is critical.

Electrical Performance Specifications

The cable is designed for low-voltage underground mining applications.

Key specifications include:

• Rated voltage: 1 kV

• Maximum conductor temperature: 90°C

• Short-circuit temperature: 250°C

• Excellent mechanical-electrical stability under movement

This allows the cable to support heavy-duty underground mobile mining equipment operating continuously under production load.

Mechanical Performance in Harsh Underground Conditions

Mechanical performance is the primary reason mining operators choose specialised free trailing cables.

The PROTOMONT (Z) NSSHKCGEOEU cable is engineered specifically for severe underground movement conditions.

Key mechanical characteristics include:

• Torsional resistance: ±10°/m

• Permanent tensile strength: 40 N/mm²

• Travel speed capability: 150 m/min

• High tensile steel braid reinforcement

• Excellent abrasion resistance

• Improved anti-twist performance

This combination makes the cable highly suitable for underground coal shearers and mobile mining equipment operating in confined underground roadways.

Temperature Resistance for Australian Underground Mining

Australian underground mining environments can experience severe operating temperatures combined with high humidity and poor ventilation.

The cable is designed for:

Fixed Installation

• -40°C to +80°C

Flexible Operation

• -20°C to +60°C

These temperature ratings support reliable operation in demanding underground environments across Australia.

Real-World Australian Mining Applications

Bowen Basin Longwall Operations – Queensland

Queensland’s Bowen Basin is one of the world’s most productive underground coal mining regions.

Longwall systems in this region operate continuously under extreme production demands.

Common operational challenges include:

• Long cable trailing distances

• High-speed shearer movement

• Abrasive roadway conditions

• Water exposure

• Constant machine repositioning

Heavy-duty free trailing cables with reinforced steel braid construction are highly valued in Bowen Basin operations because they help reduce:

• Cable twisting

• Abrasion failures

• Production interruptions

• Mechanical damage

• Premature cable replacement

Mining crews operating in Queensland underground coal mines typically prioritise cable reliability because downtime on longwall systems can rapidly become extremely expensive.

Hunter Valley Underground Coal Operations – NSW

New South Wales underground coal operations frequently use roadheaders, continuous miners, and longwall systems operating under severe mechanical conditions.

Underground roadways in the Hunter Valley often involve:

• Confined spaces

• Rough roadway surfaces

• Sharp directional changes

• High traffic movement

• Wet operating conditions

In these environments, standard industrial flexible cables often fail prematurely.

Heavy-duty low-torsion trailing cables provide major advantages including:

• Improved trailing stability

• Reduced snagging

• Longer service life

• Better movement control

• Reduced maintenance frequency

Australian underground operators increasingly prefer reinforced mining cables specifically designed for free trailing conditions.

Illawarra Underground Mines – NSW

The Illawarra region contains several technically challenging underground coal operations.

Conditions often include:

• Steep roadway grades

• Tight operational spaces

• Continuous machine movement

• High abrasion exposure

• Moisture-heavy environments

In these mines, free trailing cable durability directly affects production reliability.

Low-torsion heavy-duty mining cables help minimise:

• Cable twisting

• Mechanical fatigue

• Electrical interruptions

• Maintenance shutdowns

Hard Rock Mining Operations – Western Australia

Although commonly associated with coal mining, heavy-duty free trailing cables are also relevant in hard-rock underground mining.

Western Australian underground operations using:

• LHD machines

• Development drills

• Underground loaders

• TBMs

• Mobile mining equipment

often require reinforced trailing cables capable of surviving severe mechanical conditions.

The steel braid reinforcement and robust sheath system make this type of cable suitable for aggressive underground environments involving:

• Sharp rock surfaces

• Long trailing distances

• High movement speeds

• Frequent flexing cycles

Port and Bulk Material Handling Applications

The engineering principles behind heavy-duty mining trailing cables also apply to Australian bulk handling infrastructure.

Coal export terminals and mining ports often use mobile equipment exposed to:

• Dynamic movement

• Heavy mechanical stress

• Abrasion

• Salt exposure

• Continuous operation

Applications can include:

• Reclaimers

• Stackers

• Mobile conveyors

• Reeling systems

• Ship loaders

Major Australian ports such as:

• Hay Point

• Dalrymple Bay

• Newcastle

• Port Kembla

all operate equipment requiring highly durable flexible power cable systems.

Although these applications differ from underground mining, the need for mechanical durability and flexibility remains similar.

Why Cable Downtime Costs Australian Mines Millions

Underground mining downtime is extremely expensive.

A failed trailing cable can cause:

• Production stoppages

• Equipment shutdowns

• Safety delays

• Maintenance callouts

• Operational bottlenecks

In high-production longwall operations, downtime costs can escalate rapidly.

That is why mining operators increasingly focus on:

• Cable reliability

• Mechanical durability

• Service life

• Maintenance reduction

• Total operational cost

In many cases, a premium mining cable delivers lower overall operating cost through reduced failures and longer service intervals.

Installation Best Practices for Free Trailing Mining Cables

Even the strongest underground mining cable requires correct installation practices.

Best practices include:

Maintain Correct Bending Radius

Avoid excessive bending beyond recommended limits.

Prevent Excessive Twisting During Installation

Incorrect installation can introduce torsional stress before operation begins.

Minimise Sharp Drag Points

Avoid routing cables across sharp edges or abrasive obstructions.

Inspect Steel Braid Condition

Routine inspection helps identify mechanical wear before major failures occur.

Monitor High-Wear Areas

Common wear locations include:

• Machine entry points

• Roadway corners

• Dragging surfaces

• Transition zones

Regular inspection improves operational reliability.

Why Australian Mining Engineers Prefer Purpose-Built Mining Cables

General industrial flexible cables are rarely suitable for underground mining.

Mining engineers increasingly prefer purpose-built mining cables because they offer:

• Higher tensile strength

• Better torsional control

• Improved abrasion resistance

• Longer service life

• Enhanced operational reliability

• Reduced downtime risk

Purpose-built mining cables are engineered specifically for the realities of underground operation.

SEO Keywords Driving Mining Procurement Searches

This article is optimised for mining procurement and engineering search intent including:

• PROTOMONT (Z) 1 kV

• Coal shearer trailing cable Australia

• Free trailing mining cable

• Longwall shearer cable Queensland

• High tensile LHD cable NSW

• Underground mining trailing cable

• Steel braid mining cable Australia

• Heavy duty mining cable

• Underground coal mining cable

• Low torsion trailing cable

• Roadheader cable Australia

• TBM mining cable

• LHD trailing cable WA

These search terms align with real-world procurement behaviour across Australia’s mining sector.

Future Trends in Underground Mining Cable Technology

Australia’s underground mining industry continues evolving toward:

• Greater automation

• Higher production rates

• Electrified mining fleets

• Faster machine movement

• Increased equipment utilisation

These changes place greater demands on mining cable systems.

Future cable developments are likely to focus on:

• Lower torsional behaviour

• Higher tensile capability

• Improved abrasion resistance

• Smart cable monitoring

• Reduced cable weight

• Extended operational lifespan

Heavy-duty reinforced trailing cables will remain essential for modern underground mining infrastructure.

Choosing the Right Underground Mining Cable Supplier

When sourcing underground mining cables in Australia, procurement teams typically evaluate suppliers based on:

• Underground mining experience

• Technical support capability

• Mechanical performance

• Lead times

• Product reliability

• Availability during shutdown periods

• Custom manufacturing options

• Compliance understanding

Mining operators increasingly prefer suppliers familiar with Australian underground operating conditions.

Expert Summary

The PROTOMONT (Z) NSSHKCGEOEU 1 kV heavy-duty free trailing mining cable is purpose-built for severe underground mining environments where high tensile strength, low torsional behaviour, and exceptional mechanical durability are critical.

Its specialised construction — combining very finely stranded tinned copper conductors, EPR insulation, semiconductive layers, galvanized steel braid reinforcement, and a heavy-duty PCP outer sheath — delivers the performance required for demanding free trailing applications involving longwall shearers, roadheaders, TBMs, and underground LHD equipment.

For Australian underground coal mines in Queensland, New South Wales, and hard-rock mining operations in Western Australia, this type of reinforced trailing cable helps reduce downtime, minimise cable failures, and improve operational reliability under constant high-speed movement and severe mechanical stress.

As underground mining operations continue increasing production intensity and automation, purpose-built low-torsion heavy-duty mining cables will remain essential for maintaining safe, reliable, and cost-effective underground operations.

How to Reach Us

Get in Touch

SiteMap

hongjing.Wang@feichuncables.com

Product Catalogue

Home

Products

News

Contact Us

Reeling Cable

Festoon Cable

Shore Power Cable

Mining Cable

Scan to add us on WeChat
