PSP CU/PVC/PVC/SWA/PVC (2CORES-5 CORES) PVC Insulated,PVC Bedded,Galvanised Steel Wire Armoured,PVC Sheathed Cable, 0.6/1kV

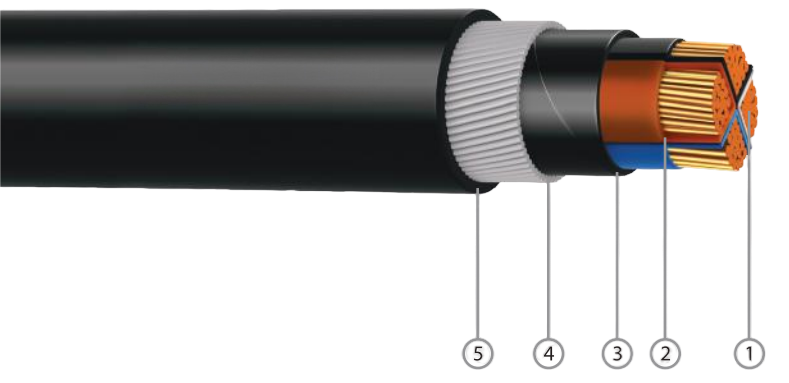

CONSTRUCTION

Conductor:

Plain Annealed Copper,Class 2 Stranded Circular,Compacted   or   Sectored

Outer

Outer

Sheath:

Sheath  Colour:

Polyvinyl      Chloride(PVC)Compound Type TM 1

Black

Insulation:

Polyvinyl      Chloride(PVC)Compound

Type  TIi

Insulation    Colour:

Assembly:

2 Cores:

Brown,Blue  or  Red,Black

3 Cores:

Brown,Black,Grey   or    Red,Yellow,Blue

4  Cores:

Brown,Black,Grey,Blue   or   Red,Yellow, Blue,Black

5  Cores:

Brown,Black,Grey,Blue,Green/Yellow     or Red,Yellow,Blue,Black,Green/Yellow      or

White  with  Black  numbering  or  Others Cores  cabled  together  with  filler  and    covered  with   Polyester(PET)Tape

Bedding:

Bedding   Colour:

Polyvinyl      Chloride(PVC)Compound Type TM1

Black

Armour:

Galvanized Steel Wire Armoured (SWA)

INSTALLATION REFERENCE

Min.Bending Max.Pulling

Radius(mm):           8x  cable  overall  diameter

Tension(N/mm²):     70
