PSP CU/PVC/PVC/SWA/PVC (MULTI-CORES) PVC Insulated,PVC Bedded,Galvanised Steel Wire Armoured,PVC Sheathed Cable, 0.6/1kV

ELECTRICAL CHARACTERISTICS

Operating     Voltage,Uo/U:              0.6/1KV

Operating    Temperature:                 -15℃ to  70℃

Final  Short  Circuit  Temperature:     160℃

INSTALLATION     REFERENCE

Min.Bending          Radius(mm):             8xcable       overalldiameter

Max.Pulling      Tension(N/mm²):      70

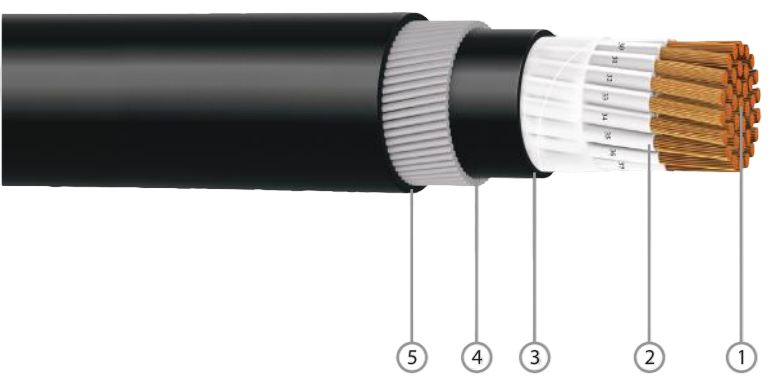

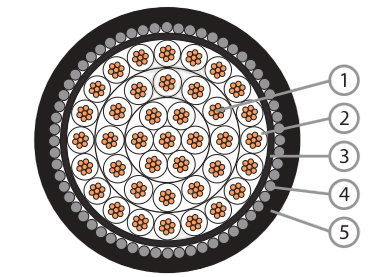

CONSTRUCTION

Conductor:Plain Annealed Copper,Class 2 Stranded Circular  or  Compacted

Insulation:Polyvinyl      Chloride(PVC) Compound Type TI1

Insulation    Colour:White  with  Black  numbering  or  Others

Assembly:Cores  cabled  together  and  covered  with Polyester(PET)Tape

Bedding:Polyvinyl      Chloride(PVC)CompoundType  TM1

Bedding   Colour:Black

Armour:Galvanized Steel Wire Armoured (SWA)

Outer  Sheath:Polyvinyl      Chloride(PVC)Compound Type  TM1

Outer  Sheath  Colour:Black
