PUR-C-HF EMC Festoon Cable
For use as energy and control cable in festoon systems and as a drag chain cable.
APPLICATION For use as energy and control cable in festoon systems and as a drag chain cable. PUR sheath offers protection againsthydrolysis, solvents, alkalines and oils. Copper screen provide protection against electromagnetic effects. |
CHARACTERISTICS Voltage Rating (Uo/U) 0.6/1kV Temperature Rating Fixed installation: -50°C to + 80°C Mobile operation: -40°C to +80°C Minimum Bending Radius Fixed Application: 6 x Overall Diameter Mobile Applications: 8 x Overall Diameter Maximum Tensile Load 15 N/mm² Maximum Torsion ±25º/m Travel Speed Festoon Systems: Up to 200m/min Reeling: Up to 60m/min horiz. / Up to 200m/min vertical Chain Systems: Up to 200m/min vertical |

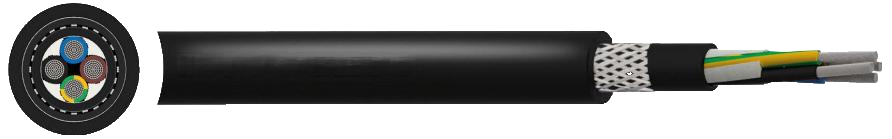

CONSTRUCTION
Conductor
Class 5 flexible stranded Copper
Insulation
Halogen free compound
Lay Up
Central textile strength member, cores laid up in concentric layers
Inner Sheath
PUR-HF (Polyurethane Halogen Free, flame retardant)
Screen
TCWB (Tinned copper wire braid) coverage min. 80%
Outer Sheath
PUR-HF (Polyurethane Halogen Free, flame retardant)
Core Identification
4 Core: eGreen/Yellow● Brown ● Black ● Grey
5 Core: eGreen/Yellow● Blue ● Brown ● Black ● Grey
From 6 cores: white cores with black numbers
Sheath Colour
● Black or ● Yellow or Orange
