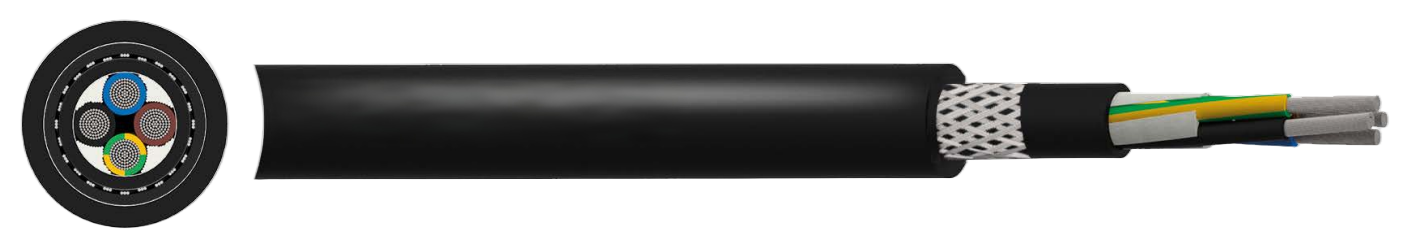

PUR-C-HF EMC Festoon Cable – 0.6/1 kV
Durable screened PUR cable for energy and control in festoon and drag chain systems
$15.00
APPLICATION：
For use as energy and control cable in festoon systems and as a drag chain cable. PUR sheath offers protection against hydrolysis, solvents, alkalines and oils. Copper screen provide protection against electromagnetic effects.
CHARACTERISTICS
Voltage Rating (Uo/U)
0.6/1kV
Temperature Rating
Fixed installation: -50°C to + 80°C
Mobile operation: -40°C to +80°C
Minimum Bending Radius
Fixed Application: 6 x Overall Diameter
Mobile Applications: 8 x Overall Diameter
Maximum Tensile Load
15 N/mm²
Maximum Torsion
±25º/m
Travel Speed
Festoon Systems: Up to 200m/min
Reeling: Up to 60m/min horiz. / Up to 200m/min vertical
Chain Systems: Up to 200m/min vertical
CONSTRUCTION
Conductor
Class 5 flexible stranded Copper
Insulation
Halogen free compound
Lay Up
Central textile strength member, cores laid up in concentric layers
Inner Sheath
PUR-HF (Polyurethane Halogen Free, flame retardant)
Screen
TCWB (Tinned copper wire braid) coverage min. 80%
Outer Sheath
PUR-HF (Polyurethane Halogen Free, flame retardant)
Core Identification
4 Core: eGreen/Yellow● Brown ● Black ● Grey
5 Core: eGreen/Yellow● Blue ● Brown ● Black ● Grey From 6 cores: white cores with black numbers
Sheath Colour
● Black or ● Yellow or Orange
STANDARDS
Generally to IEC 60502, IEC 60228, DIN VDE 0293-308, DIN
VDE 0472-501-503/508, DIN VDE 0472-303/401/402/602/615 DIN VDE 0250-1 IEC 60332-1 HD/EN/IEC 60811-2-1,
DIN VDE 0473-811-2-1
