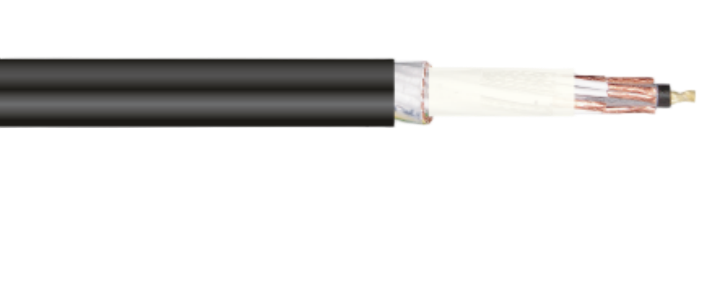

PUR-HF Drumable Halogen-Free Reeling Cable
Heavy-duty reeling cable for hoisting, conveyors, mobile motors, and outdoor/indoor applications under extreme mechanical stress
$2.00
Application |
halogen-free reeling cable for heavy duty devices such as cable reels (also vertical ope- ration), hoisting devices, conveyor facilities, mobile motors, rail motors and agricultural devices. For exceptional mechanical stress in dry, humid and wet rooms and for outdoor use. |
Special Features |
• free from lacquer damaging substances and silicone (during production) • reduced outer diameters and reduced weights • also available on request for permanent use in water (no drinking water) up to 50 m di- ving depth |
Remarks |
• conform to RoHS • range of application look at the technical guidelines • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE • We are pleased to produce special versions, other dimensions, core and jacket co- lours on request. |

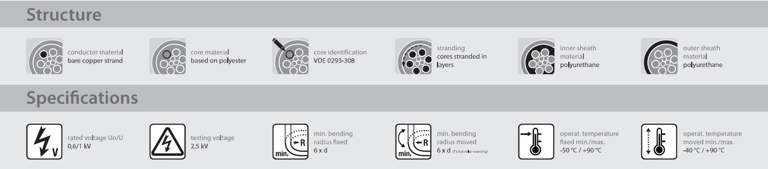

Structure & Specifications | |
conductor material conductor class core insulation core identification supporting element stranding inner sheath material anti-torsion braid outer sheath sheath colour printing rated voltage testing voltage current carrying capacity min. bending radius fixed min. bending radius moved speed torsion tensile strength operat. temp. fixed min/max | bare copper strand acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5 based on polyester acc. to VDE 0293-308 up to 5 wires coloured, from 6 wi- res white with black numerals with GNYE central textile element cores stranded in layers polyurethane wide-meshed polyester braid polyurethane black yes 0,6/1 kV 2,5 kV acc. to DIN VDE, see Technical Guideline, basic table, column D 6 x d 6 x d (7,5 x d at roller reversing) In reeling operation up to 180 m/min and in vertical ree- ling up to 120 m/min +/- 50 °/m without supporting element max. 25 N/mm² -50 °C / +90 °C |
