PUR-HF Lift Trailing Cable
For use as vertical reeling cable under high mechanical stresses, torsion, tension and torque.
APPLICATION
For use as vertical reeling cable under high mechanical stresses, torsion, tension and torque. Mainly used for Vertical Platform Lift Trailing Cable reeling application. A strength member has been integrated to increase tensile load, acceleration and speed.
CHARACTERISTICS
Voltage Rating (Uo/U)
0.6/1kV
Temperature Rating
Fixed installation: -50°C to +90°C
Mobile operation: -40°C to +90°C
Minimum Bending Radius
Fixed Application: 6 x Overall Diameter
Mobile Applications: 8 x Overall Diameter
Maximum Tensile Load
30 N/mm²
Maximum Torsion
±25º/m
Travel Speed
Festoon Systems: Up to 200m/min
Reeling: Up to 200m/min horiz. / Up to 150m/min vertical

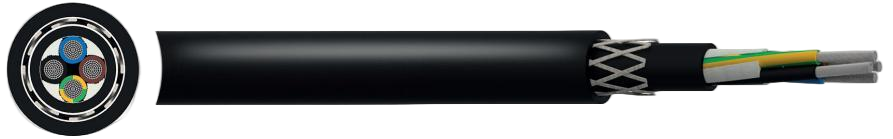

CONSTRUCTION
Conductor
Class 5 or Class 6 flexible stranded plain annealed copper
Insulation
halogen free compound
Lay Up
Central Aramide (Kevlar) strength member, cores laid up in concentric layers
Inner Sheath
PUR-HF (Polyurethane, Halogen Free, flame retardant)
Braiding
Anti-twisting Aramide (Kevlar) yarns
Outer Sheath
Halogen Free, flame retardant Polyurethane compound
Core Identification
4 Core: eGreen/Yellow ● Brown ● Black● Grey
5 Core: eGreen/Yellow
Blue ● Brown ● Black
Grey From 6 cores: white cores with black numbers
Sheath Colour
Black or Yellow or Orange
