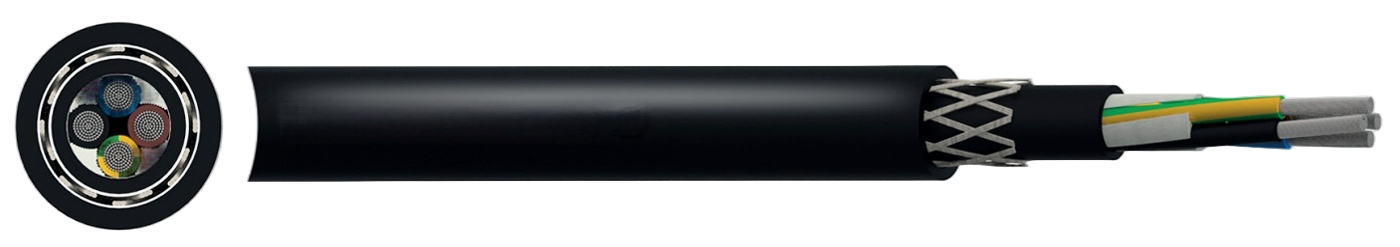

PUR-HF Lift Trailing Cable – 0.6/1 kV
Reinforced PUR vertical reeling cable for lifts and hoisting systems under high mechanical stress
$15.00
APPLICATION：
For use as vertical reeling cable under high mechanical stresses, torsion, tension and torque. Mainly used for Vertical Platform Lift Trailing Cable reeling application. A strength member has been integrated to increase tensile load, acceleration and speed.
STANDARDS：
IEC 60228, DIN VDE 0293-308, IEC 60502 & VDE 0250,
DIN VDE 0472-501, 502, 503, 508, DIN VDE 0472-401, 402, 602, 303, 615, DIN VDE 0250-1, IEC 60502, IEC 60332-1
HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1
CHARACTERISTICS
Voltage Rating (Uo/U)
0.6/1kV
Temperature Rating
Fixed installation: -50°C to +90°C
Mobile operation: -40°C to +90°C
Minimum Bending Radius
Fixed Application: 6 x Overall Diameter
Mobile Applications: 8 x Overall Diameter
Maximum Tensile Load
30 N/mm²
Maximum Torsion
±25º/m
Travel Speed
Festoon Systems: Up to 200m/min
Reeling: Up to 200m/min horiz. / Up to 150m/min vertical
CONSTRUCTION
Conductor
Class 5 or Class 6 flexible stranded plain annealed copper
Insulation
halogen free compound
Lay Up
Central Aramide (Kevlar) strength member, cores laid up in concentric layers
Inner Sheath
PUR-HF (Polyurethane, Halogen Free, flame retardant)
Braiding
Anti-twisting Aramide (Kevlar) yarns
Outer Sheath
Halogen Free, flame retardant Polyurethane compound
Core Identification
4 Core: eGreen/Yellow ● Brown ● Black● Grey
5 Core: eGreen/Yellow Blue ● Brown ● Black Grey From 6 cores: white cores with black numbers
Sheath Colour
Black or Yellow or Orange
