PUR-HF Low Voltage Festoon Cable
For use as energy and control cable in festoon systems and as a chain cable.
APPLICATION
For use as energy and control cable in festoon systems and as a chain cable. Also suitable as drum reeling cable under moderate mechanical stresses, torsion, tension and torque.The special polyurethane compound jacket offers a very good protection against hydrolysis,solvents,alkalines and oils.
CHARACTERISTICS
Voltage Rating (Uo/U)
0.6/1kV
Temperature Rating
Fixed installation: -50°C to +80°C
Mobile operation: -40°C to +80°C
Minimum Bending Radius
Fixed Application: 6 x Overall Diameter
Mobile Applications: 8 x Overall Diameter
Maximum Tensile Load
15 N/mm2
Maximum Torsion
+/- 25o/m
Travel Speed
Festoon systems: up to 200m/min
Reeling applications: up to 60m/min horizontal
Chain systems: up to 200 N/mm

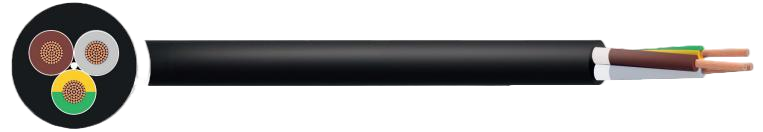

CONSTRUCTION
Conductor
Class 5 flexible stranded tinned copper
Insulation
HF (Halogen Free) compound based on polyester
Lay Up
Central textile strength member, cores laid up in concentric layers with short length of lay
Outer Sheath
PUR HFFR (Polyurethane - Halogen Free, Flame Retardant)
Core Identification
3 Core: eGreen/Yellow Blue ●Brown
4 Core: eGreen/Yellow ●Brown ● Black Grey
5 Core: eGreen/Yellow
Blue ● Brown ● Black
Grey From 6 cores: white cores with black numbers
Sheath Colour
Black or Yellow or Orange
