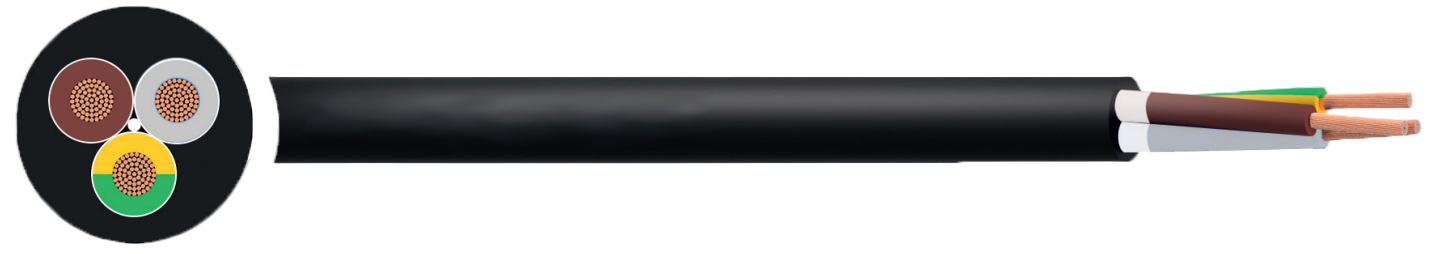

PUR-HF Low Voltage Festoon Cable – 0.6/1 kV
Flexible PUR cable for energy and control in festoon, chain, and moderate reeling applications
$2.00
APPLICATION
For use as energy and control cable in festoon systems and as a chain cable. Also suitable as drum reeling cable under moderate mechanical stresses, torsion, tension and torque. The special polyurethane compound jacket offers a very good protection against hydrolysis,solvents,alkalines and oils.
CHARACTERISTICS
Voltage Rating (Uo/U)
0.6/1kV
Temperature Rating
Fixed installation: -50°C to +80°C
Mobile operation: -40°C to +80°C
Minimum Bending Radius
Fixed Application: 6 x Overall Diameter
Mobile Applications: 8 x Overall Diameter
Maximum Tensile Load
15 N/mm2
Maximum Torsion
+/- 25o/m
Travel Speed
Festoon systems: up to 200m/min
Reeling applications: up to 60m/min horizontal
Chain systems: up to 200 N/mm
CONSTRUCTION
Conductor
Class 5 flexible stranded tinned copper
Insulation
HF (Halogen Free) compound based on polyester
Lay Up
Central textile strength member, cores laid up in concentric layers with short length of lay
Outer Sheath
PUR HFFR (Polyurethane - Halogen Free, Flame Retardant)
Core Identification
3 Core: eGreen/Yellow Blue ●Brown
4 Core: eGreen/Yellow ●Brown ● Black Grey
5 Core: eGreen/Yellow Blue ● Brown ● Black Grey From 6 cores: white cores with black numbers
Sheath Colour
Black or Yellow or Orange
STANDARDS
IEC 60228, Generally to IEC 60502, DIN VDE 0472-501, 502, 503, 508, DIN VDE 0472-401, 402, 602, 303, 615, DIN VDE 0250-1 and IEC 60502, IEC 60332-1, HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1, DIN VDE 0298-4
