PUR-HF TROMMEL LV Reeling Cable
Drum reeling cable for use under high mechanical stresses, torsion, tension and torque.

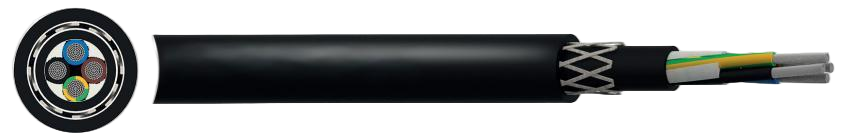

CONSTRUCTION
Conductor
Class 5 flexible stranded Copper
Insulation
LSZH (Low Smoke Zero Halogen)
Lay Up
Central textile strength member, cores laid up in concentric layers
Inner Sheath
PUR-HF (Polyurethane, halogen free flame retardant)
Braid
Anti-twisting Textile braid
Outer Sheath
PUR-HF (Polyurethane, halogen free flame retardant)
Core Identification
4 Core:
Green/Yellow Brown Black Grey
5 Core:eGreen/Yellow ● Blue ● Brown ● Black
Grey From 6 cores: white cores with black numbers
Sheath Colour
Black or Yellow or Orange
APPLICATION
Drum reeling cable for use under high mechanical stresses, torsion, tension and torque. Suitable as vertical drum reeling cable under moderate mechanical stresses. A strength member has been integrated to increase tensile load, acceleration and speed. PUR sheath offers protection against hydrolysis,solvents, alkalines and oils.
CHARACTERISTICS
Voltage Rating (Uo/U)
0.6/1kV
Temperature Rating
Fixed installation: -50°C to +90°C
Mobile operation: -40°C to +90°C
Minimum Bending Radius
Fixed : 6 x Overall Diameter
Mobile: 8 x Overall Diameter
Maximum Tensile Load
20 N/mm2
Maximum Torsion
+/- 25o/m
Travel Speed
Festoon systems: up to 200m/min
Reeling applications: up to 200m/min horizontal
Minimum Distance for Change of Direction
20x Overall Diameter
