PUR-JZ-HF / PUR-J-HF / PUR-OZ-HF: DIN VDE Certified Oil-Resistant PUR Drag Chain Cable for Harsh Industrial Environments

Introduction: Meet the Ultimate Drag Chain Cable for Demanding Applications

Picture this: A precision machine shop operates its CNC equipment around the clock, with cables constantly flexing through drag chain systems immersed in coolant mists and hydraulic fluid residue. Within months, standard cables show cracking, insulation breakdown, and conductivity failures—forcing costly production shutdowns and emergency replacements. Sound familiar?

Enter the PUR-JZ-HF / PUR-J-HF / PUR-OZ-HF series: a purpose-engineered drag chain cable solution meticulously aligned with DIN VDE 0285-525-1 and DIN EN 50525-1 standards. This cable family delivers exceptional oil resistance, chemical tolerance, and mechanical durability precisely where conventional cables falter. With a flexible bending radius of just 7.5 times the outer diameter and a polyurethane outer sheath specifically formulated for continuous motion applications, these cables transform reliability in environments that punish lesser alternatives.

Why does this PUR drag chain cable consistently outperform in critical industrial setups like rolling mills, steelworks, and automated manufacturing systems? The answer lies in its sophisticated material science, rigorous testing protocols, and field-proven design that addresses the unique stresses of drag chain installations. Let's explore how this cable engineering excellence translates into measurable operational advantages.

Technical Specifications: Built to Withstand Extreme Conditions

Temperature Performance and Electrical Ratings

The PUR-JZ-HF / PUR-J-HF / PUR-OZ-HF series demonstrates remarkable thermal adaptability across installation types. Flexible installations maintain full performance from -20°C to +80°C, while fixed installations extend this lower threshold to -40°C—crucial for outdoor machinery or cold storage facilities. This temperature range ensures consistent electrical characteristics regardless of seasonal variations or process heat exposure.

Electrical specifications reflect robust safety margins: rated at 300/500V nominal voltage (AC U0/U), the cable withstands a 4000V core-to-core test voltage and an 8000V breakdown voltage. These parameters provide substantial headroom beyond operating conditions, reducing insulation failure risks even when cables experience voltage transients common in industrial motor circuits.

Advanced Construction Architecture

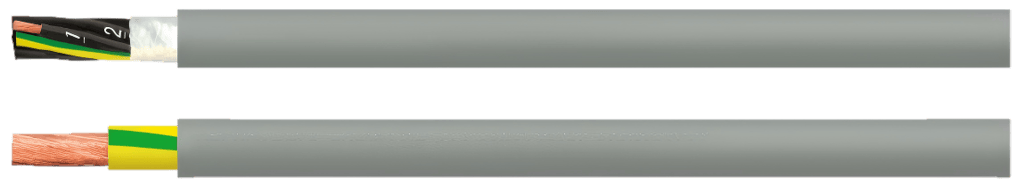

At the cable's core lies extra-fine stranded copper wire conforming to DIN VDE 0295 Class 6 / IEC 60228 Class 6 specifications. This stranding class—featuring numerous fine copper filaments—delivers superior flexibility compared to coarser constructions, reducing mechanical stress during continuous bending cycles. The copper's high strand count distributes flexing forces across multiple conductors, dramatically extending fatigue life in drag chain applications.

Core insulation employs oil-resistant PVC compliant with DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI2). This specialized formulation resists mineral oils, coolant emulsions, and cutting fluids that would rapidly degrade standard PVC insulation. Each core receives black insulation with consecutive white digit labeling per DIN VDE 0293-334, enabling quick field identification during installation and maintenance.

The cable offers configuration flexibility through its protective conductor designation system: "G" models incorporate a green-yellow (GN-YE) ground conductor positioned in the outer layer for optimal electromagnetic compatibility, while "x" (OZ) variants omit the protective conductor for applications requiring maximum conductor density within a given diameter.

Cores are stranded in layers with optimally matched lay lengths—a critical detail that prevents conductor bunching during flexing and ensures uniform load distribution. A fleece wrapping surrounds the core bundle, providing cushioning and preventing individual conductor abrasion against the outer sheath.

Polyurethane Outer Sheath Excellence

The defining feature of this drag chain cable is its special-grade full polyurethane outer sheath manufactured per DIN VDE 0207-363-10-2 / DIN EN 50363-10-2 (compound type TMPU). Unlike thermoplastic elastomer alternatives, this polyurethane formulation delivers exceptional abrasion resistance—often exceeding 100,000 bend cycles in accelerated testing—while maintaining low-temperature flexibility.

The grey RAL 7001 sheath color provides professional aesthetics and practical visibility in industrial settings. Length marking in meters facilitates inventory management and cut-to-length ordering, eliminating guesswork during installation planning.

Bending Radius Engineering

Minimum bending radius specifications directly impact drag chain system design: flexible installations require just 7.5 times the outer diameter, while fixed installations need 4 times the outer diameter. For example, a 15mm outer diameter cable flexes reliably in drag chains with radii as tight as 112.5mm—enabling compact machine designs without sacrificing cable longevity. These specifications assume dynamic bending with continuous motion; stationary bends tolerate even tighter radii.

Unmatched Properties: Resistance That Delivers Reliability

Comprehensive Chemical Resistance

The PUR-JZ-HF / PUR-J-HF / PUR-OZ-HF series resists an exhaustive list of industrial substances: mineral oils, UV radiation, ozone, oxygen, weathering effects, hydrolysis, microbial growth, coolants, hydraulic fluids, acids, alkalis, greases, seawater, and wastewater. This broad resistance spectrum stems from polyurethane's inherent chemical stability and the oil-resistant PVC core insulation.

Consider coolant emulsions—the nemesis of many cable types. These water-oil mixtures penetrate standard insulation, causing swelling, softening, and eventual electrical failure. The TI2 compound used in this cable maintains dimensional stability even after prolonged immersion, as verified through DIN VDE 0473-811-404 / DIN EN 60811-404 / IEC 60811-404 oil resistance testing.

Hydrolysis resistance prevents polyurethane degradation in humid environments—a problem that plagued earlier polyurethane formulations. Modern TMPU compounds incorporate stabilizers that maintain mechanical properties even in continuous moisture exposure, validated through accelerated aging tests.

Mechanical Superiority for Moving Applications

High abrasion resistance, notch resistance, tear resistance, cut resistance, and wear resistance combine to create a cable that thrives in drag chain systems where constant motion generates friction against chain links and adjacent cables. The polyurethane sheath's molecular structure provides elasticity that absorbs impact without permanent deformation, while its hardness resists cutting from sharp edges.

Low adhesion characteristics prevent the cable from bonding to contaminants—a subtle but critical advantage. In oily environments, cables with high surface energy accumulate debris that increases drag chain friction and accelerates wear. This cable's low-adhesion surface stays cleaner, reducing maintenance intervals and extending system life.

Environmental and Safety Advantages

Outdoor suitability extends applications beyond factory floors to construction equipment, mining machinery, and mobile platforms exposed to sun, rain, and temperature extremes. UV resistance testing per DIN EN ISO 4892-2 confirms long-term sheath integrity under solar exposure, while weather resistance testing to the same standard validates performance across humidity cycles.

The manufacturing materials are cadmium-free, contain no silicone, and are free from substances harmful to lacquer wetting properties. This matters for equipment manufacturers who apply protective coatings—silicone contamination can create fish-eye defects in painted surfaces, while cadmium poses environmental and health concerns. EAC certification demonstrates compliance with Eurasian Conformity requirements for markets including Russia and Kazakhstan.

Why Choose This PUR Drag Chain Cable? Key Advantages Over Alternatives

Performance Comparison with Standard PVC Cables

Standard PVC drag chain cables offer initial cost advantages but lack the chemical resistance and mechanical durability of polyurethane-sheathed alternatives. In oil-exposed applications, PVC swells and softens, reducing flexibility and eventually cracking. The economic calculus shifts when factoring replacement costs, installation downtime, and production losses from cable failures. This PUR cable's superior oil and chemical resistance delivers longer service life—often 3-5 times that of comparable PVC cables in harsh environments.

PVC also exhibits poor low-temperature performance, becoming brittle below 0°C. The polyurethane sheath maintains flexibility to -20°C in dynamic applications, enabling year-round outdoor use in temperate climates. For fixed installations tolerating -40°C, this cable operates reliably in Arctic conditions where PVC would fracture.

Advantages Over Thermoplastic Elastomer Cables

Thermoplastic elastomer (TPE) cables compete in the flexible cable market but generally offer inferior abrasion resistance compared to polyurethane. While TPE provides good flexibility and reasonable chemical resistance, it wears faster in drag chains with high cycle counts or abrasive contaminants. The TMPU compound used in this cable achieves a superior balance of flexibility, toughness, and wear resistance.

Manufacturing and Environmental Benefits

Halogen-free construction eliminates concerns about corrosive gases and toxic smoke in fire scenarios—important for equipment certifications and worker safety. The absence of silicone prevents contamination issues in manufacturing environments where paint, adhesive, or coating application occurs nearby. These seemingly minor details simplify equipment qualification and reduce auxiliary precautions.

The cadmium-free composition aligns with environmental regulations like RoHS (Restriction of Hazardous Substances) and facilitates equipment exports to markets with stringent chemical restrictions. Manufacturers increasingly specify materials that simplify regulatory compliance and enhance corporate sustainability profiles.

Addressing Common Cable Challenges in Drag Chain Applications

Problem: Premature Cable Failure in High-Cycle Applications

Many facilities experience cable failures well before the expected service life, particularly in drag chains with rapid cycling or long travel distances. Root causes typically include: insufficient bending radius (forcing excessive stress), improper cable support within the chain (allowing twisting), or chemical attack on inadequate insulation materials.

Solution: The PUR-JZ-HF / PUR-J-HF / PUR-OZ-HF series addresses these issues through its 7.5x outer diameter bending radius specification, which provides clear installation guidelines that prevent over-bending. The optimally stranded core construction and fleece wrapping resist twisting and conductor displacement. Most critically, the oil-resistant PVC core insulation and polyurethane sheath withstand the chemical exposures that destroy conventional cables. When selecting from the extensive part number range—covering configurations from 2 x 0.5 mm² to 4 G 95 mm²—choose conductors with adequate current capacity to prevent internal heating that accelerates insulation degradation.

Problem: Difficulty Sourcing Cables for Specialty Configurations

Equipment manufacturers and maintenance departments often struggle to find drag chain cables matching their specific conductor counts and cross-sections, leading to oversized alternatives that waste space or undersized options risking overheating.

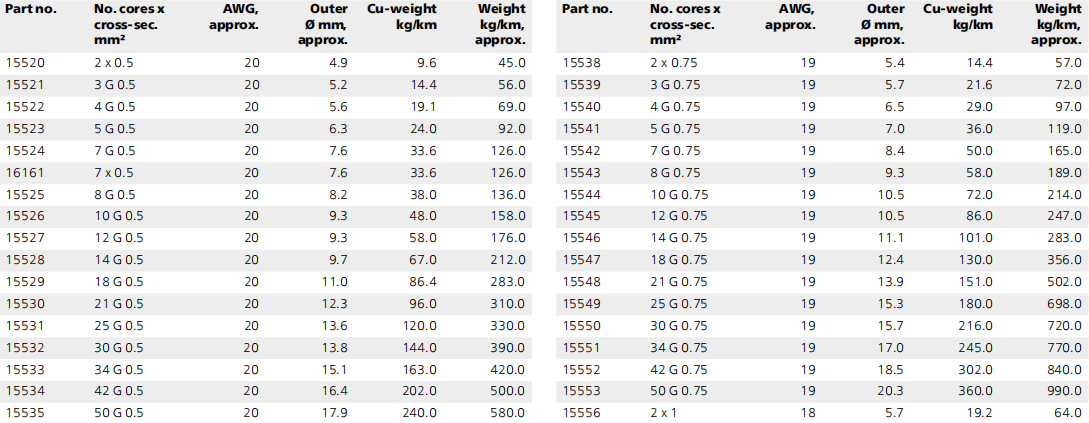

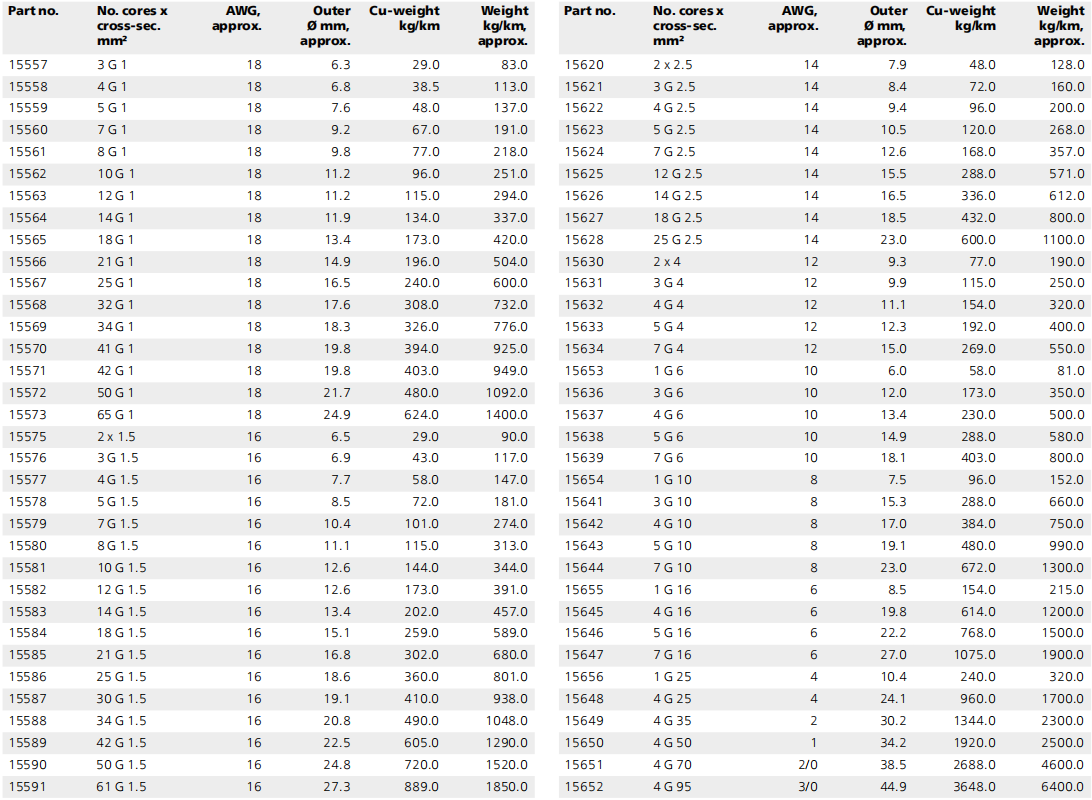

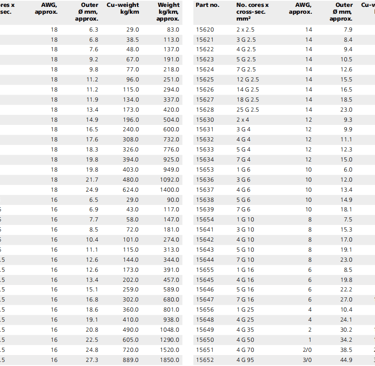

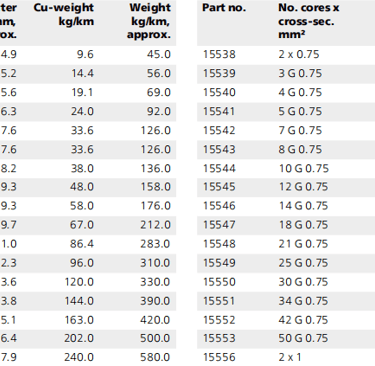

Solution: This cable family offers exceptional configuration variety: from compact 2-core 0.5 mm² versions (part no. 15520, 4.9mm outer diameter, 45kg/km) for sensor wiring to robust 4 G 95 mm² power cables (part no. 15652, 44.9mm outer diameter, 6400kg/km) for heavy machinery. The range includes protective conductor (G) and non-grounded (x/OZ) variants across AWG 20 to 3/0 equivalent sizes. This breadth enables precise specification matching, eliminating the compromises that reduce cable life or system performance.

Problem: Cable Contamination and Cleaning Difficulties

In manufacturing environments, cables accumulate coolant residue, metal chips, and other contaminants that increase drag chain friction and complicate maintenance. Rough cable surfaces or materials with high adhesion trap debris, requiring frequent cleaning or leading to premature wear.

Solution: The low-adhesion polyurethane sheath resists debris accumulation, staying cleaner in dirty environments. When cleaning becomes necessary, the cable's resistance to acids, alkalis, and solvents permits use of aggressive cleaning agents without material damage. The smooth grey RAL 7001 surface facilitates visual inspection for contamination or damage, enabling proactive maintenance before failure occurs.

Problem: Uncertainty About Cable Compatibility with Energy Supply Systems

Integrating cables into pre-engineered drag chain energy supply systems requires attention to manufacturer assembly instructions, fill guidelines, and separation requirements between power and signal cables. Incompatibilities can void system warranties or create safety hazards.

Solution: The technical documentation notes explicitly that for energy supply system use, assembly instructions must be observed, application parameters should reference selection tables, and special applications warrant consulting system manufacturers. The cable's DIN VDE compliance and standard construction facilitate integration with commercial drag chain systems. The metric conductor sizing (with AWG approximations provided for reference) aligns with European industrial standards while remaining accessible to users familiar with American wire gauge conventions.

Conclusion: Power Your Operations with Proven Performance

The PUR-JZ-HF / PUR-J-HF / PUR-OZ-HF drag chain cable series represents the convergence of materials science, electrical engineering, and real-world application feedback into a product engineered for the toughest industrial conditions. Its DIN VDE 0285-525-1 / DIN EN 50525-1 certification confirms compliance with rigorous European standards, while field performance in demanding applications validates its practical superiority.

For engineers specifying cables in automated manufacturing, machine tools, rolling mills, steelworks, or any environment combining mechanical motion with chemical exposure, this cable offers measurable advantages: extended service life reducing replacement costs, compact bending radii enabling optimized machine designs, and broad substance resistance eliminating compatibility concerns. The comprehensive part number range ensures precise configuration matching without the compromises that shorten cable life.

When evaluating drag chain cable alternatives, consider the total cost of ownership—not just initial purchase price. Factor in replacement labor, production downtime during failures, and the opportunity cost of addressing recurring problems. The PUR drag chain cable's proven reliability in oil-heavy operations and harsh industrial environments consistently delivers superior long-term value.

Contact technical specialists to discuss your specific application requirements, request samples for evaluation in your operating conditions, or specify custom lengths tailored to your machinery. The investment in cables engineered to match your equipment's operational intensity pays dividends through reduced maintenance interventions and enhanced production continuity. In industries where machine reliability directly impacts profitability, the choice is clear: specify cables built with the same uncompromising standards as the equipment they power.
