PUR Spreader LV Reeling Cable
Vertical reeling cable under high mechanical stresses, torsion, tension and torque.
APPLICATION
Vertical reeling cable under high mechanical stresses, torsion,tension and torque. Mainly used for spreader reeling applications. Strength member to increase tensile load, acceleration and speed. PUR sheath offers a very good protection against hydrolysis,solvents, alkalines and oils.
CHARACTERISTICS
Voltage Rating (Uo/U) 0.6/1kV
Temperature Rating
Fixed installation: -50°C to +90°C
Mobile operation: -40°C to +90°C
Minimum Bending Radius
Fixed Application: 6 x Overall Diameter
Mobile Applications: 8 x Overall Diameter
Maximum Tensile Load
30 N/mm²
Maximum Torsion
±25º/m
Travel Speed
Festoon Systems Up to 240m/min
Reeling Application: Up to 240m/min horiz. / Up to 180m/min vertical

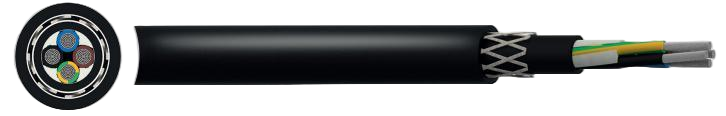

CONSTRUCTION
Conductor
Class 5 flexible stranded copper
Insulation
Halogen free compound based on polyester
Lay Up
Central Aramid strength member, cores in concentric layers
Inner Sheat
PUR-HF (Halogen Free, flame retardant Polyurethane)
Braiding
Anti-twisting element - Aramid yarns braiding
Outer Sheath
PUR-HF (Halogen Free, flame retardant Polyurethane)
Core Identification
From 6 cores:
white cores with black numbers
Sheath Colour
Black or Yellow or Orange
