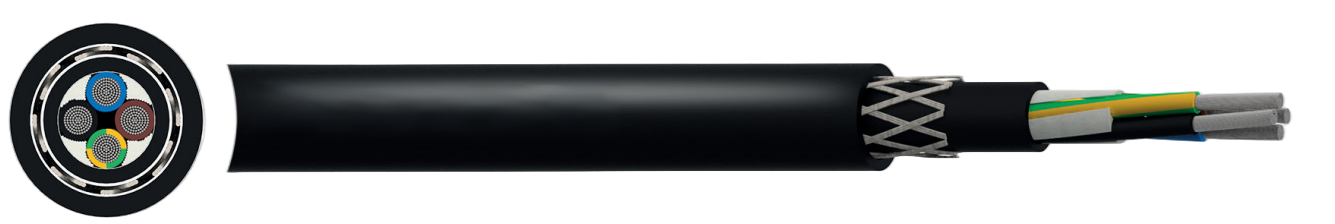

PUR Spreader LV Reeling Cable – 0.6/1 kV
Robust PUR-sheathed cable for energy and control in festoon and drag chain systems
$8.00
APPLICATION
Vertical reeling cable under high mechanical stresses, torsion,tension and torque. Mainly used for spreader reeling applications. Strength member to increase tensile load, acceleration and speed. PUR sheath offers a very good protection against hydrolysis,solvents, alkalines and oils.
STANDARDS
IEC 60228, DIN VDE 0293-308, IEC 60502 & VDE 0250,
DIN VDE 0472-501, 502, 503, 508, DIN VDE 0472-401, 402, 602, 303, 615, DIN VDE 0250-1, IEC 60502, IEC 60332-1
HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1
CHARACTERISTICS
Voltage Rating (Uo/U) 0.6/1kV
Temperature Rating
Fixed installation: -50°C to +90°C
Mobile operation: -40°C to +90°C
Minimum Bending Radius
Fixed Application: 6 x Overall Diameter
Mobile Applications: 8 x Overall Diameter
Maximum Tensile Load
30 N/mm²
Maximum Torsion
±25º/m
Travel Speed
Festoon Systems Up to 240m/min
Reeling Application: Up to 240m/min horiz. / Up to 180m/min vertical
CONSTRUCTION
Conductor
Class 5 flexible stranded copper
Insulation
Halogen free compound based on polyester
Lay Up
Central Aramid strength member, cores in concentric layers
Inner Sheath
PUR-HF (Halogen Free, flame retardant Polyurethane)
Braiding
Anti-twisting element - Aramid yarns braiding
Outer Sheath
PUR-HF (Halogen Free, flame retardant Polyurethane)
Core Identification
From 6 cores: white cores with black numbers
Sheath Colour
Black or Yellow or Orange
