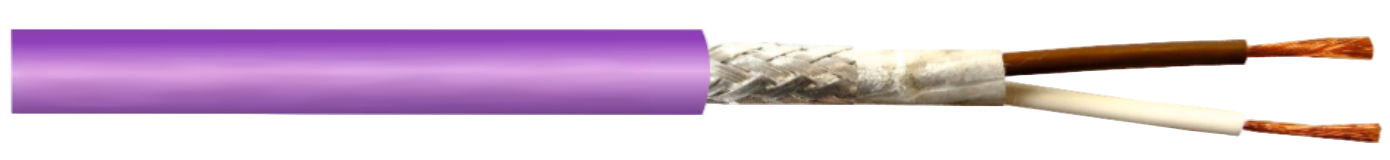

CAN-BUS Drag Chain Cables – Halogen-Free & Oil-Resistant Design
Durable Data Transmission Cables for Continuous Flexing Applications
$2.00
Technical data:
Thermal parameters:
Operating temperature:
fixed installation: -50 °C to 80 °C
flexible connections: -40 °C to 80 °C
Electrical parameters:
Wave impedance: 120 Ω +/-15%
Conductor resistance (max.): 53 Ω/km Insulation resistance (min.): 5 GΩ x km
Capacitance: 40 nF/km
Test voltage: 1000 V
Mechanical parameters:
Min. bending radius:
fixed installation: 5 x Ø
flexible connections: 10 x Ø
Design:
Conductors: very finely stranded bare copper wires (42x0,1mm)
Insulation: foamed polyethylene with a thin external layer of solid
polyethylene
Conductor colours: white and brown
Core arrangement: cores twisted together
Wrapping: special fleece tape
Screen: tinned copper wire braid
Outer sheath: special PUR with enhanced resistance to abrasion,
chemicals, resistant to oil and industrial coolants, UV resistant; colour: purple
Application:
BiT CAN-BUS Drag Chain cable for data transmission in CAN (Control Area Network) is designed for continuous operation in drag chains withstanding at least 10mln bending cycles within a chain. Cable suitable both for indoor and outdoor applications. Cables classified according to EN 50575 (CPR).
