PVC CU/PVC (SINGLE CORE) PVC Insulated,Non-Sheathed Cable,450/750V

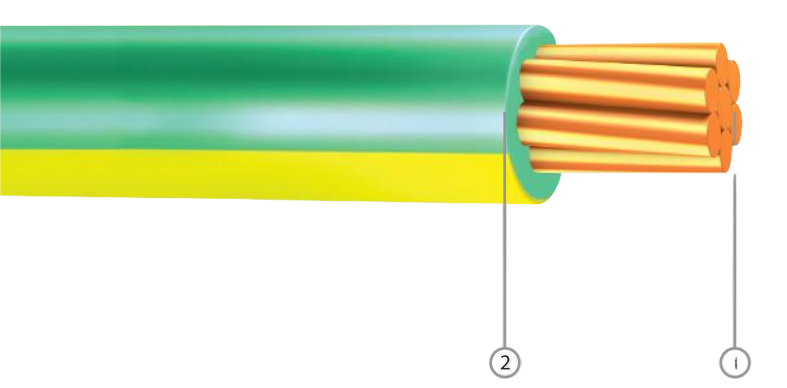

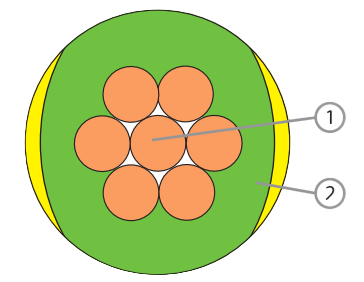

CONSTRUCTION

Conductor:                                         Plain  Annealed  Copper,Class  2

Insulation:

Stranded  Circular  or  Compacted Polyvinyl    Chloride(PVC)

Compound  Type  C

Insulation    Colour:                            Black,Green/Yellow,Red,Yellow,

Blue,White,Brown,Grey   or   Others

ELECTRICAL CHARACTERISTICS

Operaing       VoltageUo/U:               450/750V

Operating    Temperature:                 -15℃ to  70℃

Final  Short  Circuit  Temperature:    160℃  for    cable≤300mm² 140℃ for   cable>300mm²

Test  Voltage:                                    2.5kV  for  5  minutes

INSTALLATION REFERENCE

Min.Bending      Radius(mm):

Max.Pulling      Tension(N/mm²):

6×cable   overall   diameter 50
