PVC CU/PVC (SWITCHBOARD WIRES SINGLE CORE) PVC Insulated,Non-Sheathed Cable,0.6/1kV,BS6231

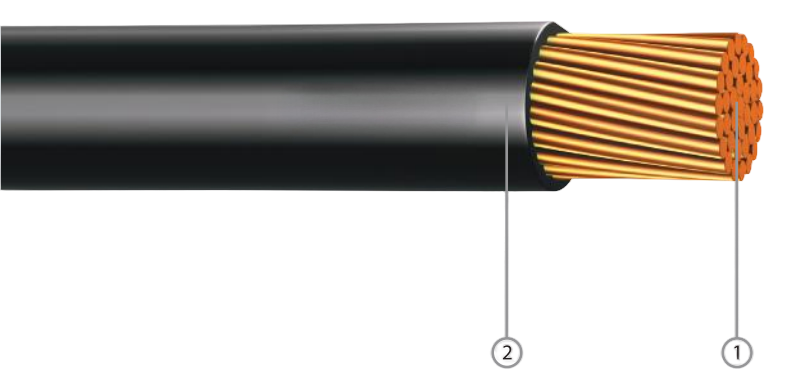

CONSTRUCTION

Conductor:                                         Plain  Annealed  Coppe,Class  5

Stranded  Circular  or  Compacted

Insulation:                                           Polyvinyl    Chloride(PVC)

Compound Type TI1

Insulation    Colour:                            Black,Green/Yellow,Red,Yellow,

Blue,WhiteBrownGrey    or    Others

ELECTRICAL CHARACTERISTICS

Operating     Voltage,Uo/U:               0.6/1KV

Operating    Temperature:                 -15℃ to  70℃

Fina  Short  Circuit  Temperature:     160℃

Test Voltage:                                     3.5kV for 5  minutes

INSTALLATION REFERENCE

Min.Bending      Radius(mm):            6x    cable   overalldiameter

Max.Pulling      Tension(N/mm²):      50
