PVC Insulated, 2 Cores Flat Cables, 450/750V

Cable

Application

These cables are used for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage. Suitable for lighting and applications not requiring earth.

Standard

AS/NZS 5000.2
AS 1125
AS 3808

Construction

Conductor	Plain annealed copper. Maximum operating temperature: 90°C
Insulation	PVC V90
Insulation colour:	2C cable: Red, Black
Sheath:	Polyvinylchloride compound PVC 3V90
Sheath colour:	White, other colors are available upon request

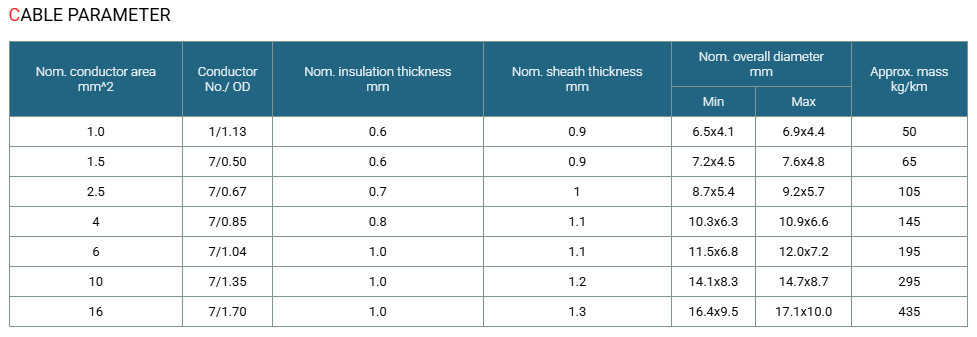

Technical Characteristics

Conductor	Current Ratings			Electrical Characteristics
Nominal Area mm^2	Unenclosed In Air A	Surrounded by thermal insulation A	Buried In Ducts A	Maximum DC Resistance @20°C Ohm/km	Maximum AC Resistance @75°C Ohm/km	Reactance Ohm/km	Single Phase Voltage Drop mV/Am
1	16	8	19	18.1	27.0	0.119	54.0
1.5	21	10	24	13.6	17.3	0.111	34.6
2.5	30	15	34	7.41	9.45	0.102	18.9
4	39	19	44	4.61	5.88	0.102	11.8
6	50	25	56	3.08	3.93	0.0967	7.86
10	68	34	75	1.83	2.33	0.0906	4.68
16	91	46	97	1.15	1.47	0.0861	2.94
