PVC Insulated, 3 Core + E Flat Cables, 450/750V

Cable

Application

These cables are used for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage. Suitable for balanced three phase applications with E.

Standard

AS/NZS 5000.2
AS 1125
AS 3808

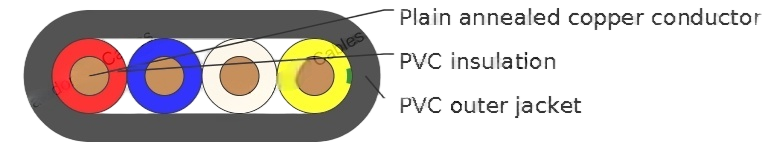

Construction

Conductor	Plain annealed copper Maximum operating temperature: 90°C
Insulation	PVC V90
Insulation colour:	Red, Black, Green/yellow
Sheath:	Polyvinylchloride compound PVC 3V90
Sheath colour:	White, other colors are available upon request

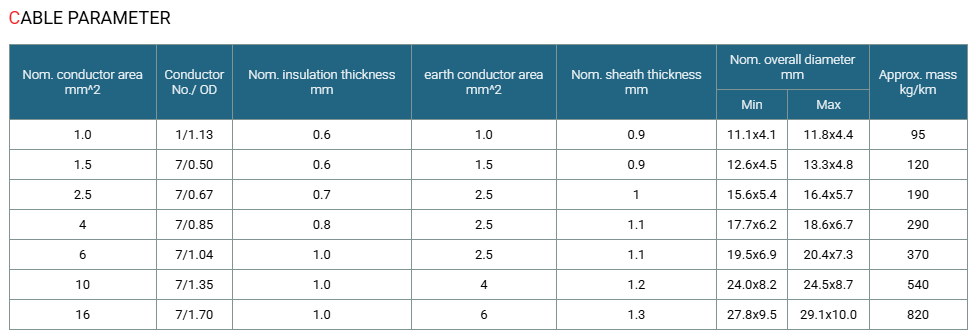

Technical Characteristics

Conductor	Current Ratings			Electrical Characteristics
Nominal Area mm^2	Unenclosed In Air A	Surrounded by thermal insulation A	Buried In Ducts A	Maximum DC Resistance @20°C Ohm/km	Maximum AC Resistance @75°C Ohm/km	Reactance Ohm/km	Three Phase Voltage Drop mV/Am
1	14	7	17	18.1	27.0	0.119	46.8
1.5	17	9	21	13.6	17.3	0.111	30.0
2.5	25	13	29	7.41	9.45	0.102	16.4
4	33	17	37	4.61	5.88	0.102	10.2
6	42	22	47	3.08	3.93	0.0967	6.8
10	58	29	63	1.83	2.33	0.0906	4.05
16	78	39	81	1.15	1.47	0.0861	2.55
