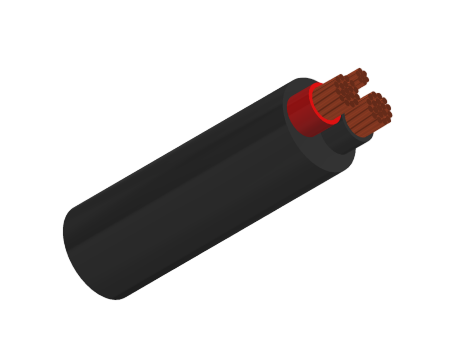

PVC Insulated, PVC Sheathed 2 core+E Unarmored Cables, 0.6/1kV

These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

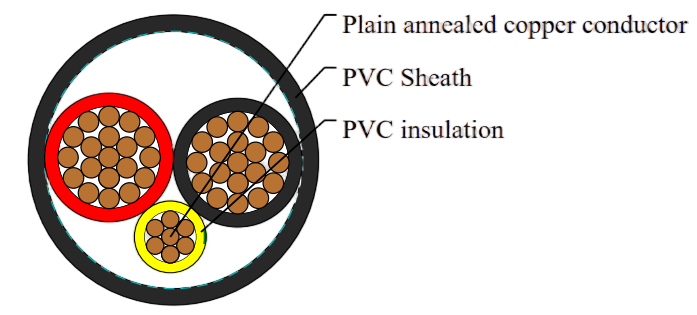

Conductor	Plain annealed copper.
Insulation	Polyvinylchloride compound PVC V-90
Insulation colour:	2C + E - Red, Black, Green/yellow
Sheath:	Polyvinylchloride compound PVC 5V-90
Sheath colour:	Black, other colors are available upon request

Conductor	Current Ratings			Electrical Characteristics
Nominal Area mm^2	Unenclosed In Air A	Buried Direct A	Buried In Ducts A	Maximum DC Resistance @20°C Ohm/km	Maximum AC Resistance @75°C Ohm/km	Reactance Ohm/km	Single Phase Voltage Drop @75°C mV/Am
1.5	18	14	22	13.6	16.5	0.111	33.0
2.5	26	20	31	7.41	9.01	0.102	18.0
4	34	26	40	4.61	5.61	0.102	11.2
6	44	34	51	3.08	3.75	0.0967	7.50
10	60	47	68	1.83	2.23	0.0906	4.46
16	80	63	88	1.15	1.40	0.0861	2.81
25	105	88	115	0.727	0.884	0.0853	1.78
35	130	105	140	0.524	0.638	0.0826	1.28
50	160	125	165	0.387	0.471	0.0797	0.957
70	200	155	205	0.268	0.327	0.0770	0.673
95	250	190	250	0.193	0.236	0.0766	0.498
