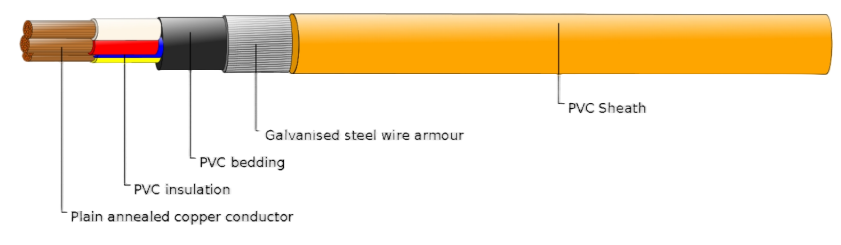

PVC Insulated, PVC Sheathed 3 core+E Armored Cables, 0.6/1kV

These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

Conductor	Plain annealed copper.
Insulation	Polyvinylchloride compound PVC V-90
Insulation colour:	3C + E – Red, White, Blue, Green/yellow
Bedding:	Polyvinylchloride compound PVC 5V-90
Bedding colour:	Black
Armour:	Galvanised Steel Wire
Sheath:	Polyvinylchloride compound PVC 5V-90
Sheath colour:	Orange, other colors are available upon request

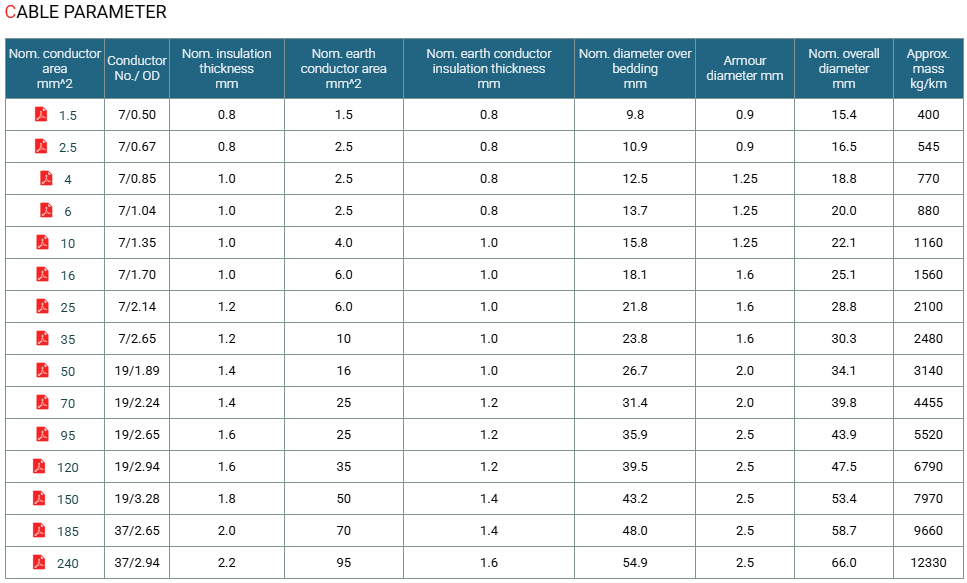

Conductor	Current Ratings			Electrical Characteristics
Nominal Area mm^2	Unenclosed In Air A	Buried Direct A	Buried In Ducts A	Maximum DC Resistance @20°C Ohm/km	Maximum AC Resistance @75°C Ohm/km	Reactance Ohm/km	Single Phase Voltage Drop @75°C mV/Am
1.5	15	24	19	13.6	16.5	0.111	28.6
2.5	22	34	26	7.41	9.01	0.102	15.6
4	29	44	34	4.61	5.61	0.102	9.71
6	37	55	43	3.08	3.75	0.0967	6.49
10	51	74	57	1.83	2.23	0.0906	3.86
16	68	96	74	1.15	1.40	0.0861	2.43
25	91	125	96	0.727	0.884	0.0853	1.54
35	110	150	115	0.524	0.638	0.0826	1.11
50	135	180	140	0.387	0.471	0.0797	0.829
70	170	220	175	0.268	0.327	0.0770	0.583
95	215	265	210	0.193	0.236	0.0766	0.431
120	245	300	240	0.153	0.188	0.0743	0.351
150	280	335	270	0.124	0.153	0.0745	0.296
185	325	380	310	0.0991	0.123	0.0744	0.251
240	385	440	370	0.0754	0.0955	0.0735	0.210
