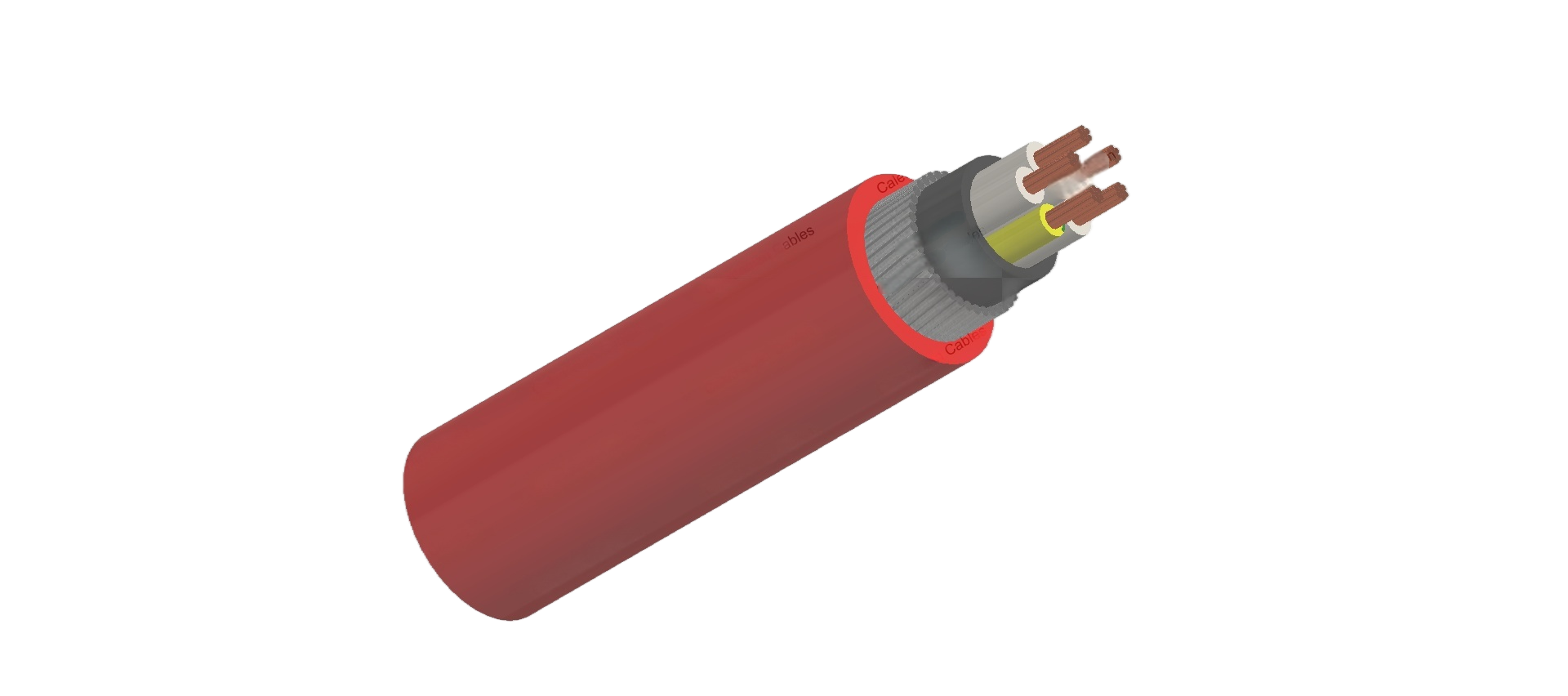

PVC Insulated, PVC Sheathed Multicore+E Armored Control Cables, 0.6/1kV

These cables are used for control circuits unenclosed, enclosed in conduit, buried direct or in underground ducts for commercial, industrial, mining and electricity authority systems where mechanical damage may occur.

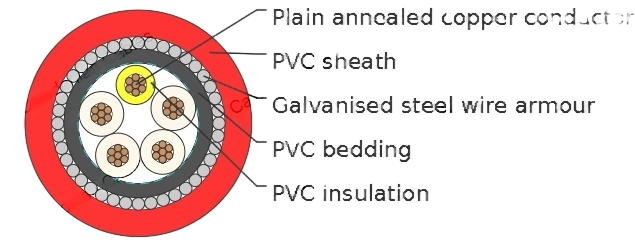

Conductor	Plain annealed copper.
Insulation	Polyvinylchloride compound PVC V-90
Insulation colour:	White(black letter numbered), Green/yellow
Sheath:	Polyvinylchloride compound PVC 5V-90
Sheath colour:	Orange, other colors are available upon request

Conductor	Current Ratings			Electrical Characteristics
Nominal Area mm^2	Unenclosed In Air A	Buried Direct A	Buried In Ducts A	Maximum DC Resistance @20°C Ohm/km	Maximum AC Resistance @75°C Ohm/km	Reactance Ohm/km	Three Phase Voltage Drop @75°C mV/Am
1.5mm2
2C+E	18	14	22	13.6	16.5	0.111	33.0
3-50C+ E	15	13	19	13.6	16.5	0.111	33.0
2.5mm2
2C+E	26	20	31	7.41	9.01	0.102	18.0
3-50C+ E	22	18	26	7.41	9.01	0.102	18.0
