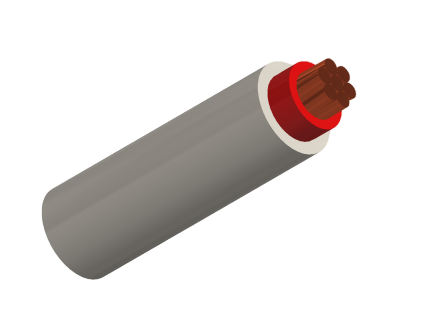

PVC Insulated, Single Core Cable, 450/750V

These cables are used for switchboard and control panel wiring, and for fixed wiring within other enclosures or apparatus where the cable is not accessible without the use of tools.

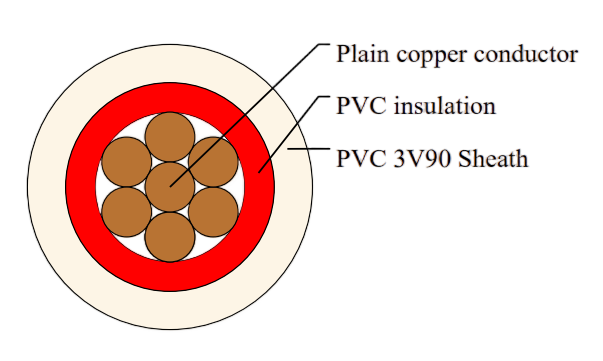

Conductor	Plain annealed copper. Maximum operating temperature: 90°C
Insulation	PVC V90
Insulation colour:	Red/Black
Sheath:	Polyvinylchloride compound PVC 3V90
Sheath colour:	Orange, other colors are available upon requestWhite, other colors are available upon request

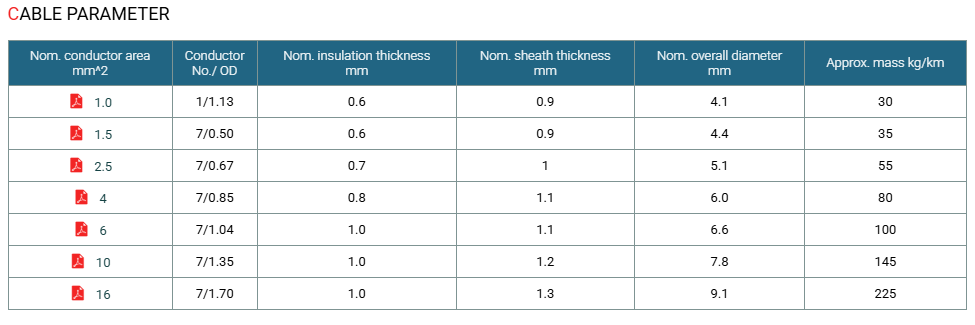

Conductor	Current Ratings			Electrical Characteristics
Nominal Area mm^2	Unenclosed In Air A	Surrounded by thermal insulation A	Buried In Ducts A	Maximum DC Resistance @20°C Ohm/km	Maximum AC Resistance @90°C Ohm/km	Reactance Ohm/km	Single Phase Voltage Drop @90°C mV/Am
1	15	26	20	18.1	27.0	0.168	54.0
1.5	18	34	26	13.6	17.3	0.157	34.6
2.5	26	47	36	7.41	9.45	0.143	18.9
4	35	62	46	4.61	5.88	0.137	11.8
6	46	78	58	3.08	3.93	0.128	7.86
10	62	103	78	1.83	2.33	0.118	4.68
16	82	132	100	1.15	1.47	0.111	2.94
