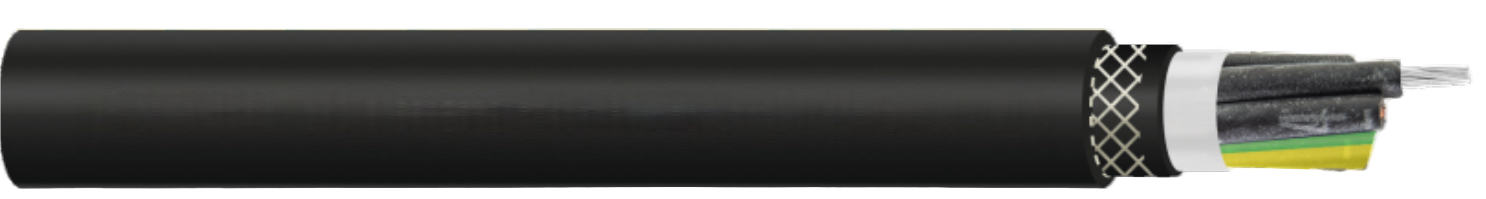

Reeling Power & Control Cable NSHTOEU-J – 0.6/1 kV

Heavy-duty flexible rubber cable for mobile equipment in ports, stockyards, and industrial reeling systems

$15.00

Design:
Main cores:
Conductors: Insulation: Ground conductor: Conductor:	tinned copper wires, finely stranded, acc. to IEC 60228 class 5 EPR compound, type 3GI3 acc. to DIN VDE 0207-20, core colours: acc. to DIN VDE 0293-308 tinned copper wires, finely stranded, acc. to IEC 60228 class 5
Insulation:	EPR compound, type 3GI3 acc. to DIN VDE 0207-20,
Inner sheath: Reinforcement: Outer sheath:	core colours: green-yellow heavy duty rubber compound, quality 5GM3 acc. to DIN VDE 0207-21, filling the interstices braid made of synthetic threads in a vulcanized bond between inner and outer sheath heavy duty rubber compound, quality 5GM3 acc. to DIN VDE 0207-21, colour: black, inkjet marking


Chemical parameters:
Resistance to oil:	DIN EN / IEC 60811-404
Behaviour in case of fire:	DIN EN / IEC 60332-1-2
Weather resistance:	unrestricted use indoors, outdoors, resistance to ozone UV and moisture

Technical data:

Thermal parameters:

Ambient temperature:

fixed installation: -40 °C to 80 °C

reeling operation: -30 °C to 80 °C

Max. permissible conductor temp.: 90 °C

Max. short-circuit temp. at conductor: 200 °C

Mechanical parameters:

Tensile load static/dynamic: 15 / 20 N/mm² Torsional stresses: ± 25 °/m

Bending radius acc. to DIN VDE 0298-3:

- fixed installation: ≥ 4 x cable - Ø

- reeling application: ≥ 6 x cable - Ø

- on deflection pulleys: ≥ 7.5 x cable - Ø

- min. distance with S-type directional changes:

20 x cable - Ø

Reeling speed: ≤ 120 m/min

Application:

Heavy duty rubber reeling cable for power supply or control applications. For use with high mechanical stress, especially for simultaneous tensile and torsional stress. Suitable for all types of mobile equipment such as stackers/reclaimers, on container handling equipment of any kind in ports or stockyard areas with motor-driven mono spiral / cylindrical reels or spring-operated reels.
