RG Series Coaxial Cables 50 Ω/75 Ω

Cable

Application

These radio frequency cables are suitable for high frequency data transmission (communication equipment, radar, instrumentation equipment) and video signal transmission.

Standards

MIL C 17 (RG)

IEC 60092-360

IEC 60332-1

IEC 60754-1/2

IEC 61034

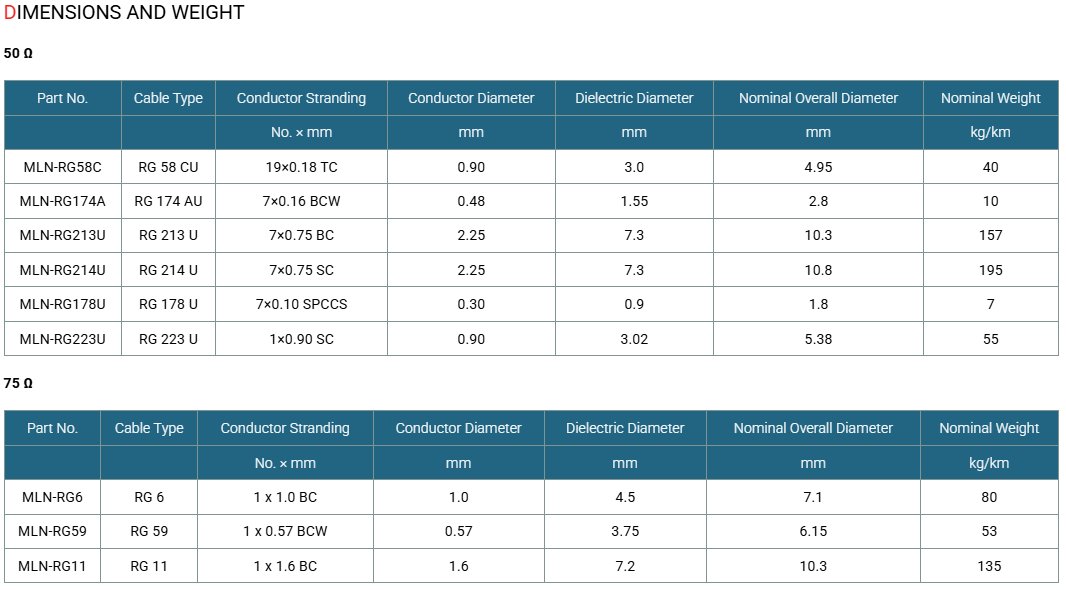

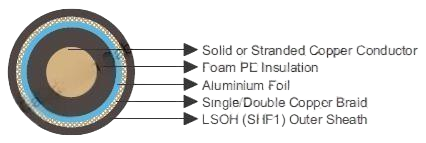

Construction

Conductors : Solid or stranded TC (Tinned copper), BC (Bare copper), BCW (Bare copperweld), SC (Silvered copper) and SPCCS (Silver plated copper on steel).

Insulation : Foam PE.

Fire Barriers : Aluminium foil.

Screen : Single or double braid. Bare, tinned or silvered copper.

Outer Sheath : LSOH (SHF1).

Electrical Characteristics

		RG 178	RG 58	RG 174	RG 213	RG 214	RG 59	RG 223	RG 6	RG 11
Capacitance	pF/m	100	100	100	100	100	67	100	52	53
Impedance @200MHz	Ω	50 ± 2	50 ± 2	50 ± 2	50 ± 2	50 ± 2	75 ± 3	50 ± 2	75 ± 3	75 ± 3
Attenuation @50MHz	dB/100m	38	13	21	3	5	10	15	4.6	2.8
Attenuation @100MHz	dB/100m	52	21	32	7	8	14	21	6.4	4.1
Attenuation @200MHz	dB/100m	74	34	46	13	13	20	30	9.0	5.9
Attenuation @400MHz	dB/100m	108	55	82	15	22	29	39	12.8	8.5
Attenuation @1000MHz	dB/100m	170	91	147	29	39	52	68	20.8	14.3
