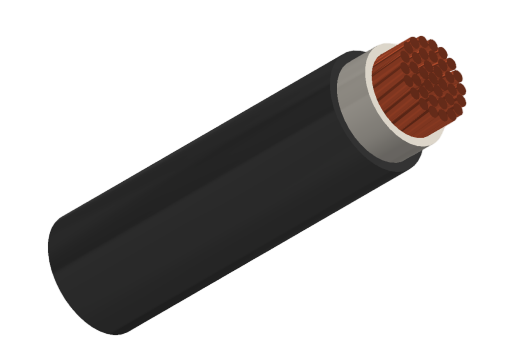

RI/RU (MTX300) 0.6/1 kV HEPR Insulated, LSOH (SHF1) Sheathed Flame Retardant Power & Control Cables (Single Core)

Application

These cables are used for fixed installations on ships and offshore units in all locations. These cables are flame retardant, low smoke & halogen free.

Standards

DIN 89160/98

IEC 60092-353

IEC 60332-1

IEC 60332-3-22

IEC 60754-1/2

IEC 61034

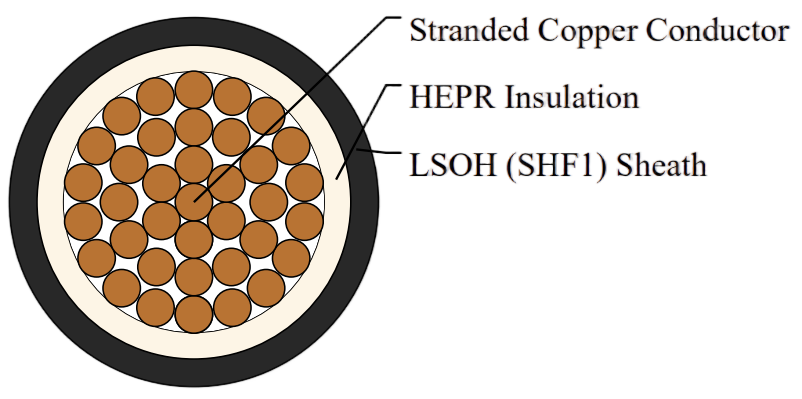

Construction

Conductors : Class 2 stranded copper conductor.

Insulation : HEPR.

Outer Sheath : LSOH (SHF1).

Core Identification

Single core : Natural colour (beige).

Mechanical and Thermal Properties

Bending Radius for Fixed Installations : 6×OD (OD>25mm); 4×OD (OD ≤25mm)

Temperature Range : -20℃ ~ +75℃
