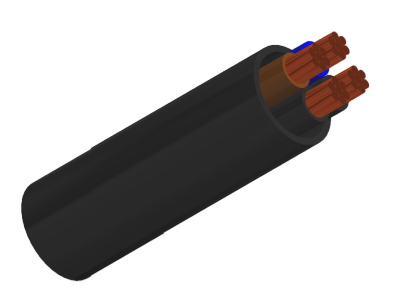

RI/RU (MTX400) 0.6/1 kV HEPR Insulated, LSOH (SHF1) Sheathed Flame Retardant Power & Control Cables (Multicore)
Cable
Application
These cables are used for fixed installations on ships and offshore units in all locations. These cables are flame retardant, low smoke & halogen free.
Standards
DIN 89160/98
IEC 60092-353
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

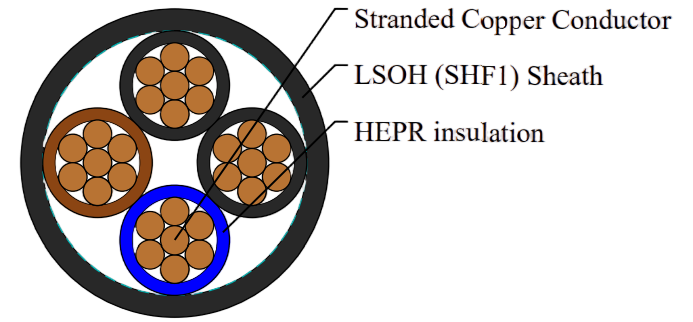

Construction
Conductors : Class 2 stranded copper conductor.
Insulation : HEPR.
Outer Sheath : LSOH (SHF1).
Core Identification
Two cores : Black, Blue.
Three cores : Black, Blue, Brown.
Four cores : Black, Blue, Brown, Black.
Five cores : Black, Blue, Brown, Black, Black.
Multi cores : All cores natural coloured, printed with numbers, starting in center with number 1.
Cables with 3 cores and more also with green/yellow core (has to be stated in order).
Mechanical and Thermal Properties
Bending Radius for Fixed Installations : 6×OD (OD>25mm); 4×OD (OD ≤25mm)
Temperature Range : -20℃ ~ +75℃
