ROI/ROU (MRE-3GCH) 150/250V HEPR Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Instrumentation & Control Cables (Multipair)
Cable
Application
These armoured cables are used on board of ships in all locations for fixed installations where cable protection is required. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
DIN 89159/98
IEC 60092-360/375
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

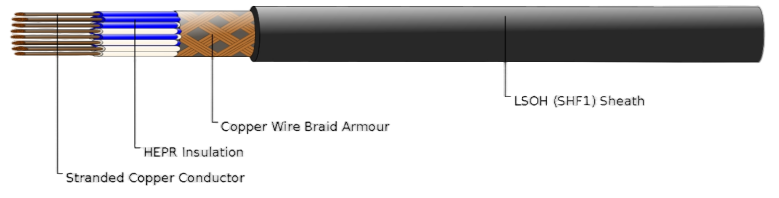

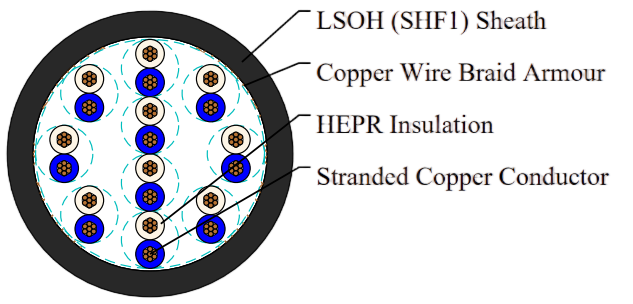

Construction
Conductors : Stranded copper conductor.
Insulation : HEPR.
Cabling Element : Pair.
Armour : Copper wire braid.
Outer Sheath : LSOH (SHF1).
Core Identification
Pair : white/blue with printed pair number and core number.
Mechanical and Thermal Properties
Bending Radius for Fixed Installations : 6×OD
Temperature Range : -30℃ ~ +75℃
