ROI/ROU (MTX300) 0.6/1 kV HEPR Insulated, LSOH (SHF1) Sheathed, Screened Flame Retardant Power & Control Cables (Single Core)

Application

These cables are used for fixed installations on ships and offshore units in all locations and on open deck. The good screening qualities of the copper braid also reduce radio interference and electrical influences to electronics installations. These cables are flame retardant, low smoke & halogen free.

Standards

DIN 89160/98

IEC 60092-353

IEC 60332-1

IEC 60332-3-22

IEC 60754-1/2

IEC 61034

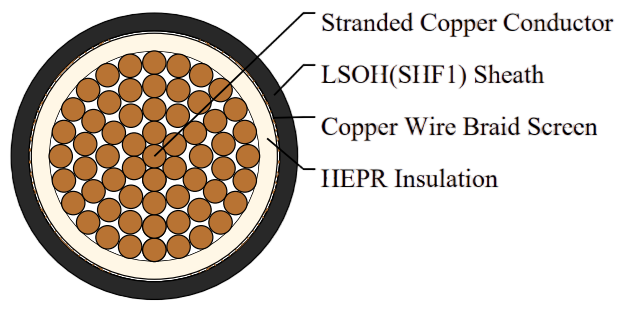

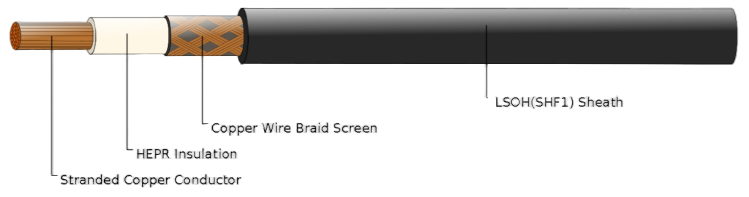

Construction

Conductors : Class 2 stranded copper conductor.

Insulation : HEPR.

Overall Screen : Copper wire braid.

Outer Sheath : LSOH (SHF1).

Core Identification

Single core : Natural colour (beige).

Mechanical and Thermal Properties

Bending Radius for Fixed Installations : 6×OD

Temperature Range : -20℃ ~ +75℃
