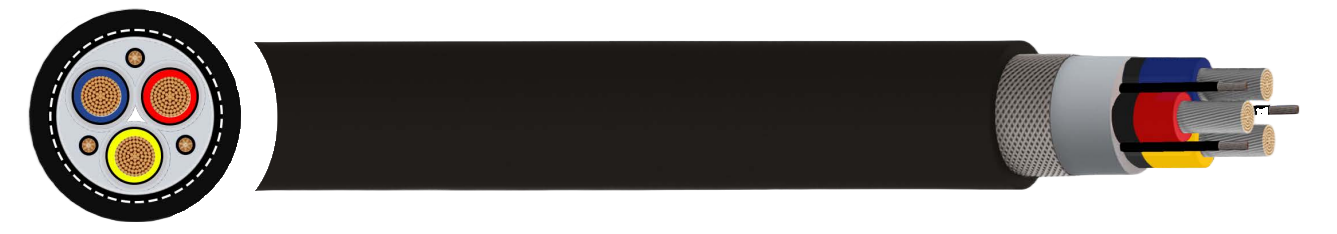

Rubber Screened Coal Mining Cable - Type 241
Australian standard cable for continuous miners, pumps and power supply
$35.00
APPLICATION
Australian Standard cables for general and underground coal mining purposes. Uses include mine power feeder cable for continuous miners, pump cable and power supply cable.
CHARACTERISTICS
Voltage Rating
Type 241.1 - 1.1kV
Type 241.3 - 3.3kV
Type 241.6 - 6.6kV Type 241.11 - 11kV
Temperature Rating
-25℃ to +90℃
CONSTRUCTION
Conductor
Tinned annealed copper wires
Separator/Screen
1.1kV: Paper separator
For other nominal voltages semi-conductive thermosetting compound over conductors
Insulation
EPR (Ethylene Propylene Rubber compound) type R-EP-90
Insulation Screen
Semi-conductive thermosetting compound
Cable Assembly
Three screened power and three earth cores laid up with right hand direction on cradle separator with central pilot core
Inner Sheath
Semi-conductive thermosetting compound
Earth Covering
Semi-conductive thermosetting compound
Cradle Separator
Semi-conductive thermosetting compound
Reinforcing Braid
Polyamide Yarns
Sheath
HD-85-PCP Thermosetting compound - extra heavy duty, oil resistance and flame retardant
Sheath Colour
● Black
STANDARDS
AS/NZS 1802:2018, AS/NZS 1125:2001 Water resistant
Flame retardant,
UV, sunlight, ozone and oil resistant
