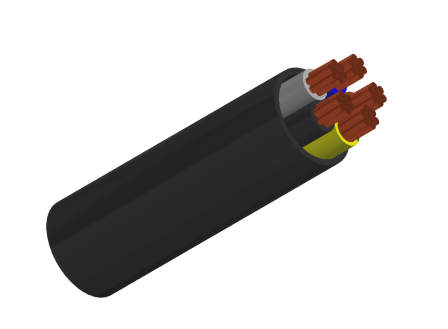

RV-K Cable

Application and Description

These cables for energy distribution are suitable for all types of low voltage industrial-type connections. in urban grids, building installations. etc. Its high flexibility makes the installation process substantially easier and as a result is particularly suitable for use in difficult layouts. They can be buried or installed in a tube as well as outdoors. They are can also be used for street lighting, power supply of buildings, ship installations and generator installations. Lastly, these cables can withstand damp conditions including total immersion in water.

Standards

UNE 21123-2

IEC 60502

IEEE 383

UNE-EN 50265-2-1

UNE-EN 60502-1

IEC 60332-1

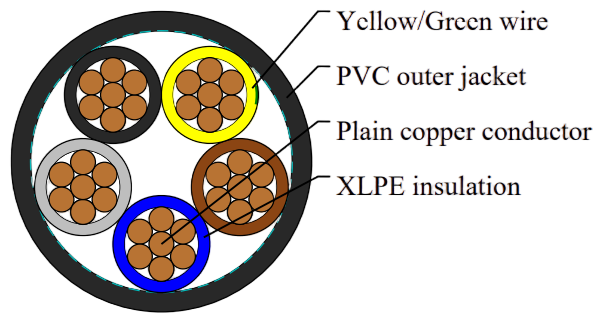

Cable Construction

Flexible plain copper strands

Strands to VDE-0295 Class-5, IEC 60228 Class-5

XLPE (Cross-Linked Polyethylene) insulation to IEC60502

Color code VDE-0293-308

Flexible black PVC (Polyvinyl Chloride) jacket

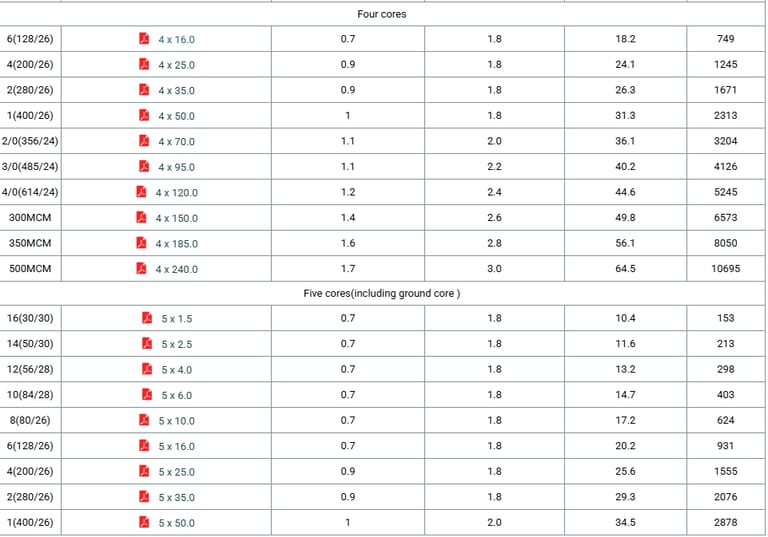

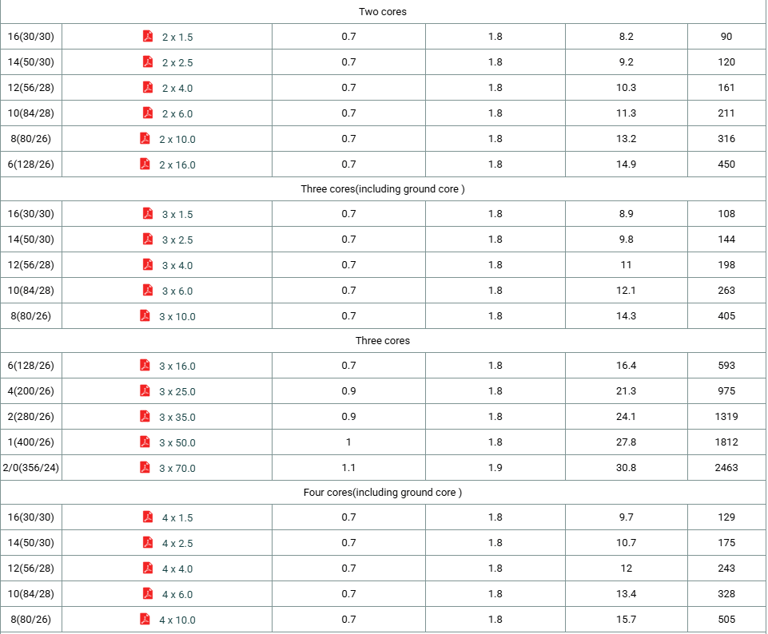

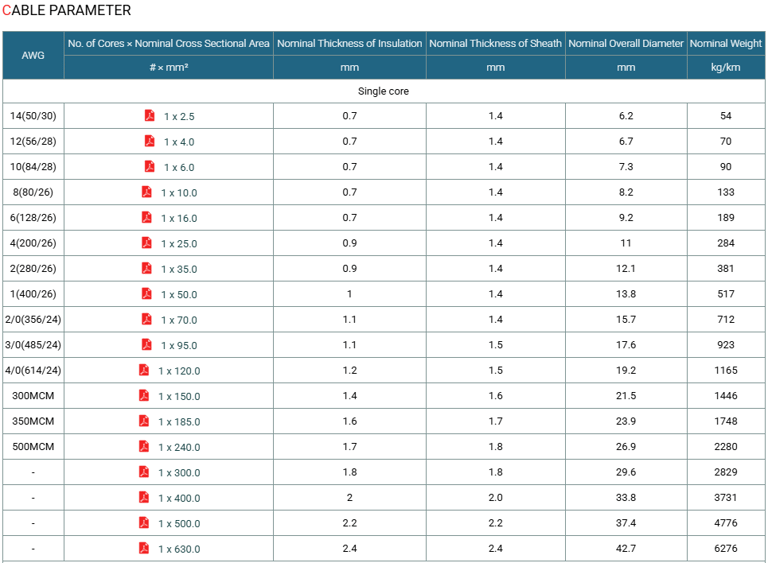

Technical Characteristics
