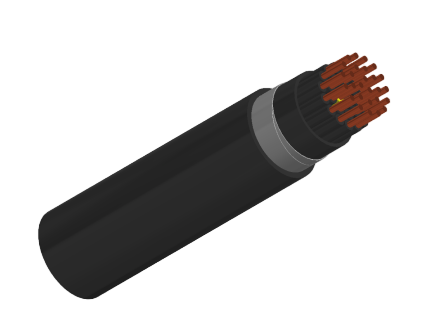

RVFV&VVFV / RVFV-K&VVFV-K

Application and Description

These cables are especially suitable for fixed installations that may be subject to mechanical aggression. They are highly recommended for use in installations in warehouses, production plants and agricultural facilities where the presence of rodents could imply a threat to cable integrity. At the same time, its use is recommended for street lighting installations. In some cases, these cables are used in those places where there is a potential explosion hazard such as petrol stations or flammable product warehouses.

Standards

UNE 21123-2

IEC 60502

EN 60332-1

IEC 60332-1

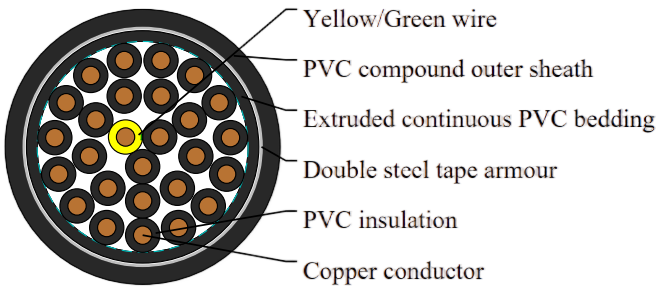

Cable Construction

Rigid electrolytic annealed copper conductor

Class 1 (up to 4mm² ) or 2 (from 6mm² upwards) in accordance with IEC 60228

Class 5 for (RVFV-K/VVFV-K) in accordance with IEC 60228

XLPE insulation (RVFV/RVFV-K) or PVC insulation (VVFV/ VVFV-K) according to IEC 60502

up to 5 conductors: by colors (RVFV/RVFV-K)

6 or more conductors : black numbered + green/yellow. (VVFV/VVFV-K)

Extruded continuous PVC bedding type ST1/ST2 of standard IEC 60502.

Double steel or aluminum tape armour

Flexible PVC compound outer sheath type ST1/ST2 of standard IEC 60502

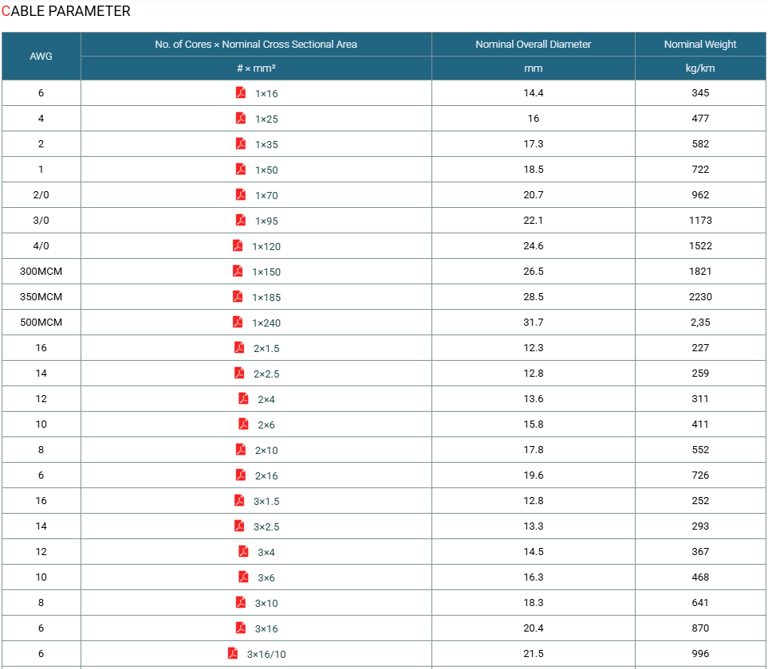

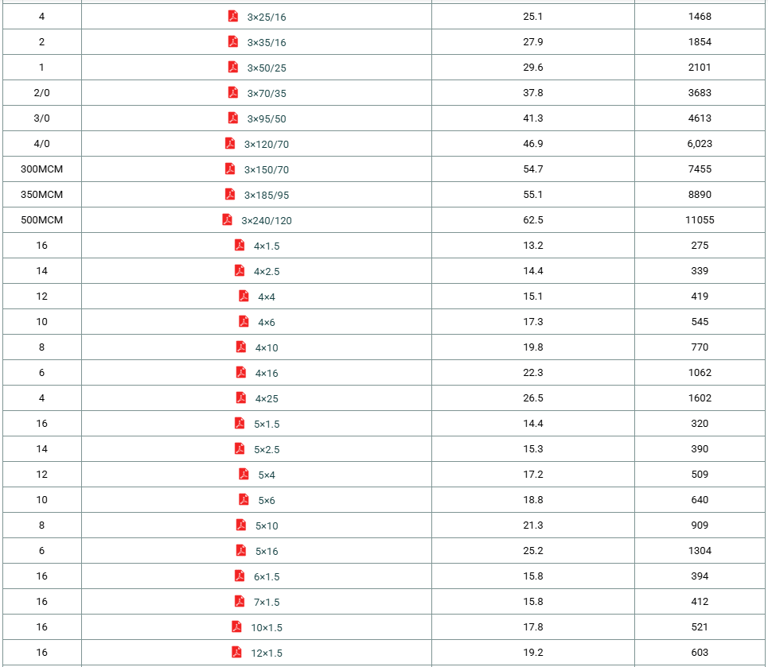

Technical Characteristics
