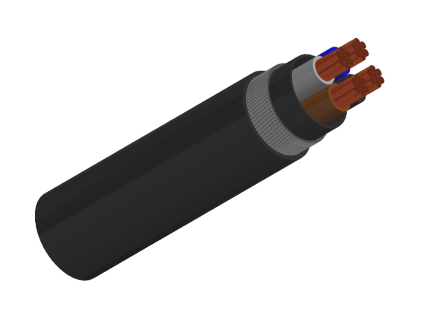

RVMV&VVMV / RVMV-K&VVMV-K

Application and Description

The Powerhard M cable's design is especially suitable for fixed installation in potentially explosion hazard locations. It is highly recommended for use in petrol stations, petrochemical plants, flammable product warehouses, etc. At the same time, it can be used in installations such as production plants, agricultural facilities, street lighting and installations in general where the cable is subject to risk of mechanical aggression.

Standards

UNE 21123-2

IEC 60502

IEC 60332-1

IEC 60332-3

EN 60332-1

EN 50266

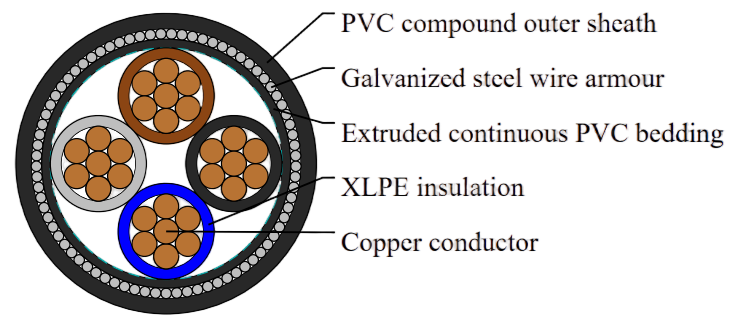

Cable Construction

Rigid electrolytic annealed copper conductor - Class 1 (up to4 mm² ) or 2 (from 6mm² upwards) in accordance with IEC 60228.

Class 5 for (RVMV-K/VVMV-K) in accordance with IEC 60228.

XLPE insulation (RVMV/RVMV-K) or PVC insulation (VVMV/VVMV-K) according to IEC 60502.

up to 5 conductors : by colours (RVMV/RVMV-K)

6 or more conductors: black numbered + green/yellow. (VVMV/VVMV-K)

Extruded continuous PVC bedding type ST1/ST2 of standard IEC 60502.

Galvanized steel or aluminum wire armour.

Flexible special PVC compound outer sheath type ST1/ST2 of standard IEC 60502.

Technical Characteristics
