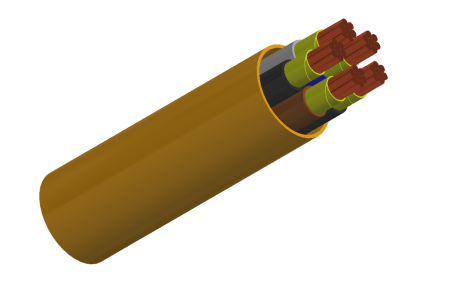

RZ1-K (AS+) Mica
Cable
Application and Description
These cables are specially designed to transmit electric power in the extrem conditions that there are in a large fire, assuring electric supply to emergency circuits, like signaling lights, fume extractors, acustic alarms, water pumps, etc. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in public places such as: hospitals, schools, museums, airports, bus terminals, shops in general, tunnels, the underground, etc., as well as in calculation centres, offices, production plants, laboratories, etc.
Standards
UNE 211 025
IEC 60502
EN 50200
IEC 60331
IEC 61034
UNE-EN 50265-2-1
UNE-EN 50265-2-1
UNE-EN 50266
UNE-EN 50267-2-1
UNE 21123

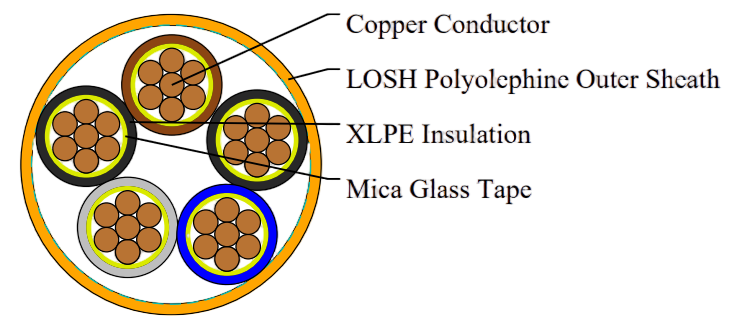

Cable Construction
Flexible electrolytic copper conductor Class 5 according to UNE-EN 60228
Insulation: Mica tape + XLPE from 25mm²
Color coded to HD 308
LOSH polyolephine outer sheath according to UNE 21123
Technical Characteristics
Working voltage | 600/1000 volts |
Test voltage | 3500 volts |
Minimum bending radius | 5 x Ø |
Working temperature | -15°C to +90°C |
Short circuit temperature | +250°C |
Insulation resistance | 20 MΩ x km |
Halogen free | IEC 60754-1, EN 50267-2-1 |
No corrosive gases | IEC 60754-2, EN 50267-2-2 |
Low smoke density | IEC 61034, EN 50268-2 |
Flame retardant | IEC 60332-1, EN 50265-2-1 |
Fire resistant | UNE-EN 50200 PH90, UNE-EN 50362 PH90, IEC 60331-21 |
Non-flame propagating | IEC 60332-3, EN 50266-2 |
