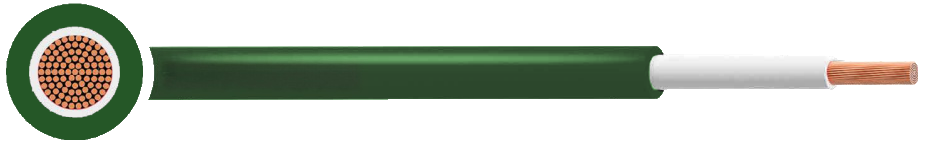

RZ1-K (AS) XLPE LSZH Flexible1.8/3kV Cable

APPLICATION

Single Core flame retardant LSZH flexible power cable suitable for fixed installations in public and high traffic areas.

CHARACTERISTICS

Voltage Rating Uo/U (Um)

1.8/3 (3.6) kV

Voltage Test

Alternating Current: 6,5 kV

Direct Current: 15 kV

Temperature Rating

-30°C to +60°C (to -40oC fixed installation) Maximum conductor temperatures: 90。C

Short circuit: 250。C (t≤ 5s)

Minimum Bending Radius

5 x overall diameter (25≤  D≤ 50)

6x overall diameter (D>50)

CONSTRUCTION

Conductor

Class 5 flexible copper conductor

Insulation

XLPE (Cross-Linked Polyethylene)

Sheath

LSZH (Low Smoke Zero Halogen) type ST8 (to IEC 60502-1) and type DMZ-E (to UNE 21123-4)

Sheath Colour

● Green ● Black
