RZ1-K XLPE LSZH Flexible Cable
For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. A flexible power and control cable designed for fixed applications.
APPLICATION For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. A flexible power and control cable designed for fixed applications. Manufactured with flexible conductors in order to facilitate installations with sinuous courses. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Temperature Rating -15°C to +90°C Minimum Bending Radius 5 x overall diameter |

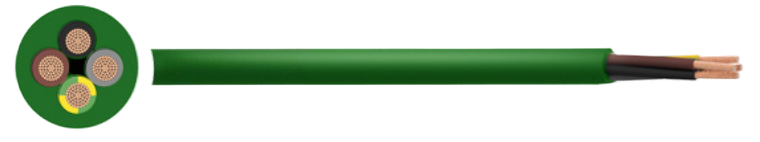

CONSTRUCTION
Conductor
Class 5 flexible copper conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
3 core: e Green/Yellow ● Blue ● Brown
4 core: e Green/Yellow ● Brown ● Black ● Grey
5 core: e Green/Yellow ● Blue ● Brown ● Black Grey
7 core: Black with White numbers
Sheath Colour
● Green
Black available on request
