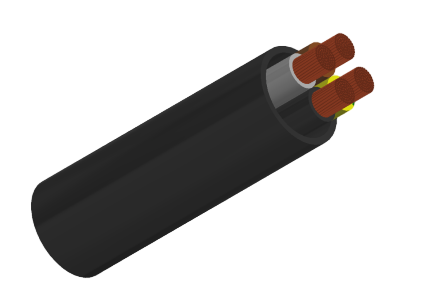

RZ1-K(AS) 0.6/1kV

Cable

Application and Description

These cables with zero Halogen are high security cables. In case of fire, they do not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in public places such as: hospitals, schools, museums, airports, bus terminals, shops in general, tunnels, the underground, etc., as well as in calculation centres, offices, production plants, laboratories, etc.

Standards

UNE 21123

EN 60332

EN 60332-1

EN 50266

EN 50267-1

EN 50267-2

EN 61034

IEC 60332-1

IEC 60332-3

IEC 60754-1

IEC 60754-2

IEC 61034

IEC 60331

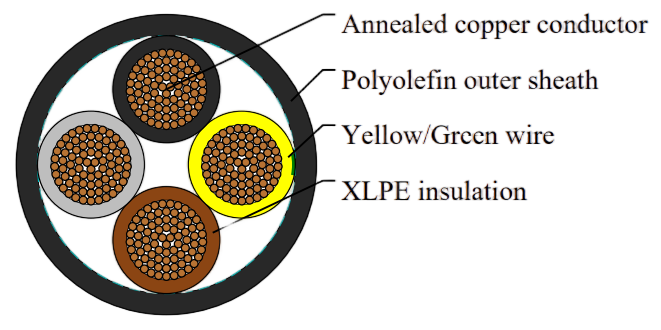

Cable Construction

Flexible electrolytic annealed copper conductor

Class 5 in accordance with IEC 60228

XLPE insulation type DIX 3 according to HD603.

Color coded to HD 308

LOSH polyolephine outer sheath according to UNE 21123

Technical Characteristics

Working voltage	600/1000 volts
Test voltage	2000 volts
Minimum bending radius	10 x Ø
Working temperature	-15°C to +90°C
Short circuit temperature	+250°C
Insulation resistance	20 MΩ x km
Halogen free	IEC 60754-1, EN 50267-2-1
No corrosive gases	IEC 60754-2, EN 50267-2-2
No toxic gases	NES 02-713, NF X 70-100
Low smoke density	IEC 61034, EN 50268-2
Flame retardant	IEC 60332-1, EN 50265-2-1
Non-flame propagating	IEC 60332-3, EN 50266-2
