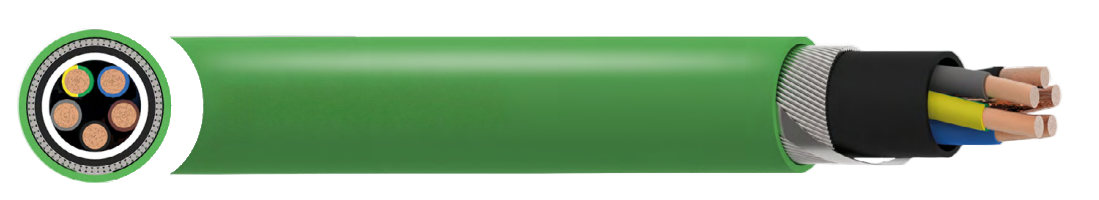

RZ1MZ1-K XLPE SWA LSZH Power Cable

APPLICATION

Multi-core LSZH cable with steel wire armour (SWA). Power and auxiliary fixed wiring cables for use in power networks,underground, outdoor and indoor applications and for use in   cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

-40ºC to +90ºC

CONSTRUCTION

Conductor

Class 5 flexible copper conductor

Insulation

XLPE (Cross-Linked Polyethylene)

Bedding Layer

LSZH (Low Smoke Zero Halogen)

Armour

Galvanized steel wires

Sheath

LSZH (Low Smoke Zero Halogen)

Core Identification

1 core:  Black

2 core:  Blue  Brown

3 core: ● Grey ● Black ● Brown

3 core including earth:  Green/Yellow  Blue  Brown

4 core: ● Blue ● Brown ● Black ● Grey

4 core including earth:  Green/Yellow  Brown  Black  Grey

5 core including earth: a Green/Yellow ● Blue ● Brown ● Black  Grey

Outer Sheath Colour

● Green
