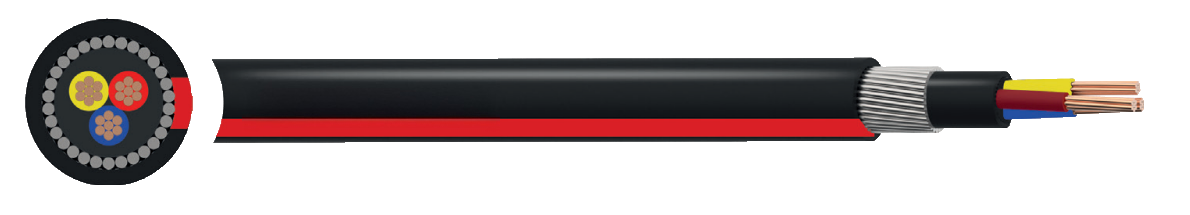

SANS 1507-4 Steel Wire Armoured XLPE/PVC Cable 0.6/1kV – 3.6/6 (7.2)kV
Robust SWA copper power cable with XLPE insulation and PVC sheath for direct burial and fixed indoor/outdoor installations
$15.00
APPLICATION：Direct burial in free-draining soil conditions for fixed indoor and outdoor installations.
STANDARDS
SANS 1507-4
Flame Retardant according to IEC 60332-1-2
CHARACTERISTICS
Voltage Rating Uo/U
0.6/1kV
Temperature Rating
Operating Temperature: -20 to +90 oC
Minimum Bending Radius
1.5mm2 to 16mm2 - Fixed: 6 x overall diameter 25mm2 and above - Fixed: 8 x overall diameter
CONSTRUCTION
Conductor
Copper conductor
Insulation
XLPE (Cross-linked Polyethylene)
Bedding
PVC (Polyvinyl Chloride)
Armour
SWA (Galvanized Steel Wire Armour)
Sheath
PVC (Polyvinyl Chloride)
Core Identification
2 core: Red Yellow
3 core: Red Yellow Blue
4 core: ● Red e Yellow ● Blue ● Black
Sheath Colour
Black with Red Stripe
