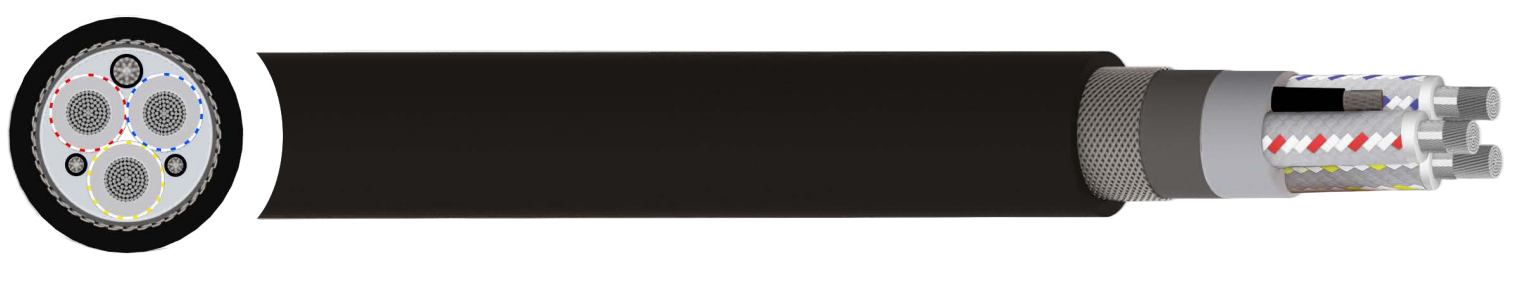

SANS Type 66/66-ECC Mining Cable (3.8/6.6 kV)
Medium voltage power solution for draglines, shovels, drills and hazardous area equipment
$120.00
APPLICATION For mining machinery and portable apparatus including those in hazardous areas, including section feeders, medium sized draglines, shovels and drills. |
CHARACTERISTICS Voltage Rating Uo/U 3.8/6.6 kV Temperature Rating -25°C to +90°C Minimum Bending Radius 6 x Overall Diameter |
CONSTRUCTION
Conductor
Class 5 flexible stranded tinned annealed Copper
Insulation
EPR (Ethylene Propylene Rubber) thermosetting compound
Braid
Nylon /Tinned copper wires
Pilot Cores
Insulated with EPM (Ethylene Propylene Monomer)
Lay
Each power core individually screened with tinned copper/ textile braid, laid up three insulated pilot cores
ECC Variant
One pilot core replaced with tinned conductor
Inner Sheath
CR (Polychloroprene Rubber)
Reinforcement braid
Open nylon braid - minimum 16 strings
Outer Sheath
CR (Polychloroprene Rubber)
Sheath Colour
● Black
STANDARDS
SANS 1520-2, SANS 1411-1, SANS 1411-3
UV resistant
Sunlight resistant Oil resistant
