Screened Bedded LSZH Cable
halogen-free screened flexible connecting cables
$6.00
APPLICATION
halogen-free screened flexible connecting cables for use in mechanical engineering for instrumentation and control equipment and for tooling machinery production lines. Suitable for flexible applications for free movement without tensile load, in dry, moist and wet rooms. The screen protects against external interference pulses whilst the bedding provides additional mechanical protection. These cables are not used for outdoor or underground installation.
STANDARDS
VDE 0295, VDE 0207-303-7, VDE 0293-308, VDE 0819-102
CHARACTERISTICS
Voltage Rating
300/500V
Temperature Rating
Fixed: -40°C to +80°C
Flexed: -15°C to +70°C
Minimum Bending Radius
Fixed: 6 x overall diameter
Moved: 15 x overall diameter

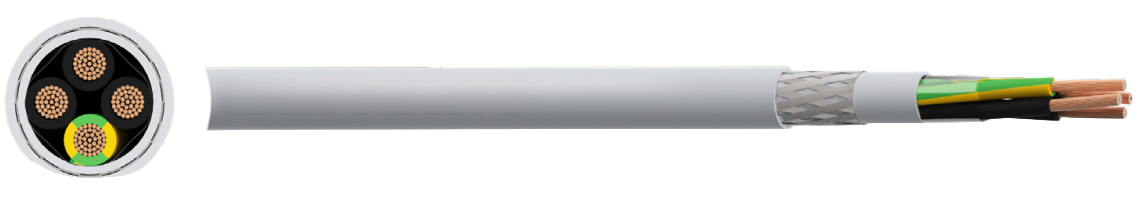

CONSTRUCTION
Conductor
Class 5 flexible stranded plain copper
Insulation
LSZH (Low Smoke Zero Halogen)
Bedding
LSZH (Low Smoke Zero Halogen)
Screen
TCWB (Tinned Copper Wires Braid)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Black with White number
From 3 cores: Black with White number + Green/Yellow
Sheath Colour
Grey
