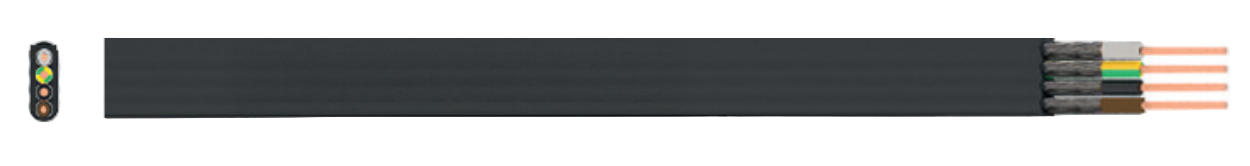

Screened Flat Festoon Cable (N)GFLCGÖU - 300/500V
Space-saving flexible cable for cranes, lifts, conveyors, and festoon systems with EMC protection
$15.00
APPLICATION
Especially used for lifts, cranes, floor conveyor systems,elevators and festoon systems. Flat structure means suitable for installations where space is at premium and requires smaller bending radius. Copper screens are efficient against electromagnetic effects. Not suitable for torsional stress.
CHARACTERISTICS
Voltage Rating Uo/U 300/500V
Temperature Rating
Flexed: -50°C to +90°C
Mobile: -30°C to +90°C
Maximum Conductor Operating Temperature: 90°C
Maximum Conductor Short-Circuit Temperature: 250°C
Minimum Bending Radius
Fixed: 5 x overall diameter
Moving: 10 x overall diameter
Maximum Tensile Load
15N/mm for static
Travel
Festoon Systems: up to 180m/min
Gantry (reeling): No application
CONSTRUCTION
Conductor
Up to 25mm2 : Class 6 electrolytic annealed, plain copper
25mm2 an above: Class 5 electrolytic annealed, plain copper
Insulation
EPR (Ethylene Propylene Rubber)
Screen
TCWB (Tinned copper wires braiding)
Sheath
CR (Chloroprene Rubber) type 5GM3
Core Identification
4 Core:e Green/Yellow ●Brown ●Black Grey
5 Core:e Green/Yellow Blue ●Brown ● Black Grey
7 Core and above: Black with white numbering Sheath Colour
● Black
STANDARDS
VDE0293-308, DIN VDE 0250-809, DIN VDE 0250-1, DIN VDE 0298-3, DIN VDE 0472-501, 503, 508,
DIN VDE 0472-401, 402, 602, 303, 615,
DIN VDE 0472-803, 804, VDE 0482-332-1-2,
DIN EN 60332-1-2, IEC 60332-1, HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1
