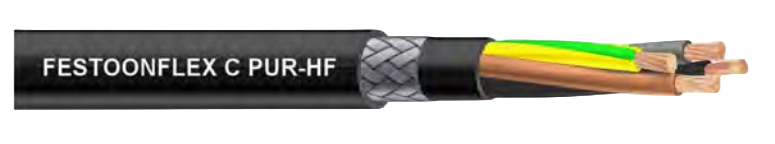

Screened PUR Festoon Cable - FESTOONFLEX C-PUR-HF D12YC11Y
Energy and control solution for drag lines, machine tools and handling systems
$5.00
Application
For use as energy and control cable in festoon systems under severe conditions, incl. frequent bending. Also for drag lines, machine tools or materials handling systems.
Design features
Conductor Plain copper, flexible class 5 acc. to DIN EN 60228 / DIN VDE 0295
Insulation Halogen free compound, based on polyester
Core identification Up to 5 cores: colored in accordance with DIN VDE 0293-308
From 6 cores: natural color with black numbers
Core arrangement Cores/Pairs twisted with short length of lay around central element
Inner sheath Due to technical reasons some of the cross section are produced with an additional polyurethane
inner sheath
Screen over inner sheath Braid of tinned copper wires
Outer sheath Polyurethane, halogen free, flame retardant;
Colour: black (opaque).

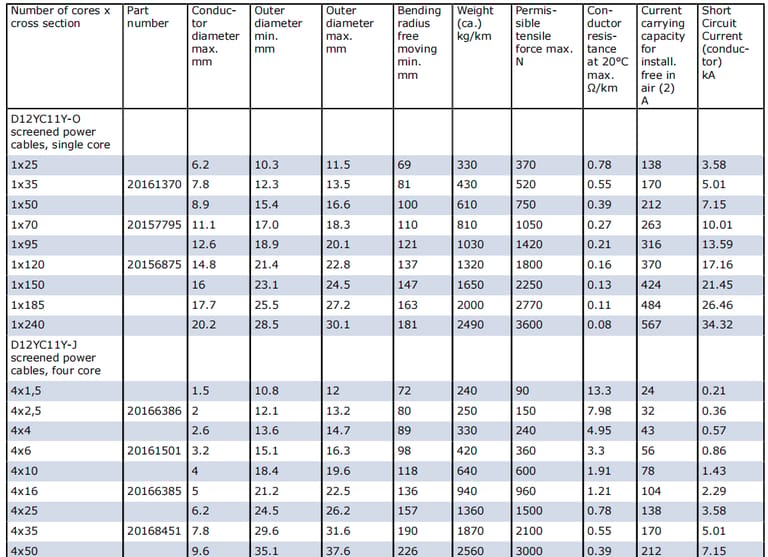

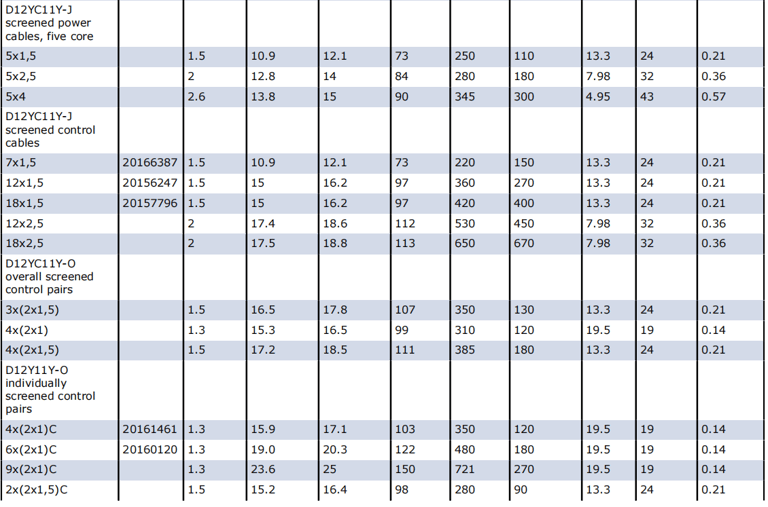

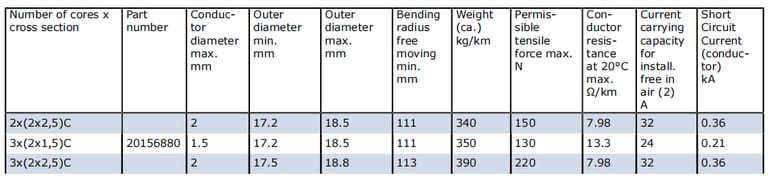

Electrical parameters
Rated voltage 0.6/1 kV (600/1000V)
Max. permissible operating voltage AC 0.7/1.2 kV
Max. permissible operating voltage DC 0.9/1.8 kV
AC Test Voltage 4 kV (5 Min.)
Current Carrying Capacity description Acc. to DIN VDE 0298-4
Thermal parameters
Max. permissible temperature at conductor 90 °C Max. short circuit temperature of the conductor 250 °C
Ambient temperature for fixed installation min -50 °C ; max +80 °C Ambient temperature in fully flexible operation min -40 °C ; max +80 °C
Mechanical parameters
Max. tensile load on the conductor 15 N/mm²
Torsional stress Not allowed
Min. bending radius Travel speed
6 x D (Proved by flexing tests acc. to HD 22.2 part 3.1)
- In festoon systems: up to 210 m/min;
- In chain systems: up to 210 m/min (note: trouble free operation is influenced by several factors, among all the chain length. For long chain system we recommend to operate at lower speed).
