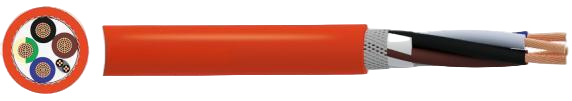

Servo Cables CP
The Servo Cable CP is suitable for application in machine tools and drag chains with medium mechanical stress.
APPLICATION Low capacity connection cable between servo controller and frequency driven motor. The Servo Cable CP is suitable for application in machine tools and drag chains with medium mechanical stress. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Temperature Rating Fixed: -50ºC to +80ºC Installation: -40ºC to +80ºC Minimum Bending Radius Fixed: 5 x overall diameter Flexed: 7.5 x overall diameter |
CONSTRUCTION
Conductor
Class 6 Fine Stranded Bare Copper
Insulation
PP (Polypropylen)
Screen
TCWB (Tinned Copper Wire Braid)
Outer Sheath
PUR (Polyurethane)
Core Identification
Black numebered +
Green/Yellow
Sheath Colour
Orange
