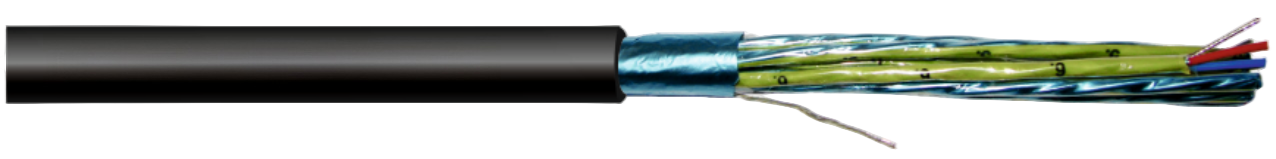

FEICHUN Data Transmission Cable – Halogen-Free and UV-Resistant
Individually Screened Pairs with Double Shielding for Reliable Indoor and Outdoor Signal Transmission
$15.00
Technical data:
Thermal parameters:
Temperature range:
operating temperature: -40 °C to 80 °C
min. installation temperature: -5 °C
Electrical parameters:
Operating voltage (peak value): 75 V
Test Voltage: 2000 V
Conductor loop resistance (20 °C) max: 81 Ω/km
Insulation resistance (min): 2 GΩ x km Effective capacitance in pair (800 Hz):
80 nF/km
Mechanical parameters:
Min. bending radius: 10 x Ø
Installation details:
Indoor cable
Outdoor cable
Min. installation temperature: -5℃
Environmental resistance:
Halogen-free
Flame retardance on a single wire
UV resistance
Certificates and approvals:
CPR Certificates / DoP
Cable construction:
Basic:
Conductor: bare copper conductors
Conductor stranding: class 2 (acc. to EN 60228, IEC 60228)
Screen: double screen
Core arrangement: pairs / triples / quads
Application:
Cables designed for analog and digital signals transmission, protected against interferences from external electromagnetic fields by collective screen. Individually screened twisted pairs ensure very good coefficient of attenuation loss. Cables designed for applications not exposed to mechanical stresses both indoor and outdoor. Outer sheath resistant to UV radiation and weather conditions. Cables classified according to EN 50575 (CPR).
