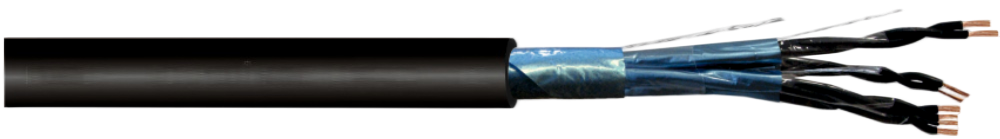

Halogen-Free Power & Control Cable 0.6/1 kV – Flexible & UV Resistant

Design:

Conductors:

bare copper conductors, multi-stranded class 5 acc. to EN 60228

Insulation:

special halogen-free compound

Core identification:

black, number coded conductors

Core arrangement:

cores twisted together or pairs twisted together

Individual screen:

aluminium backed polyester tape with tinned copper drain wire underneath each pair

Collective screen:

aluminium backed polyester tape with tinned copper drain wire

Outer sheath:

special halogen-free compound, self-extinguishing and flame retardant (acc. to EN 60332-1-2,

EN 60332-3-24, cat. C); colour: black, UV resistant

Application:Flexible, halogen-free power and control cables designed for operation in control and protective devices as well as in control circuits. Common screen improves protection of transmitted signals against external electromagnetic field.  Designed  especially for installation in industrial areas with increased fire safety requirements (limited flame propagation). They are suitable for fixed installations and for flexible connections in industrial devices, technological lines and machines operating in dry and damp rooms. Cables suitable for outdoor installation – outer sheath is UV resistant. Cables designed also for direct burial in ground. Cables are halogen-free, low smoke and significantly limit flame propagation. Cables classified according to EN 50575 (CPR).
