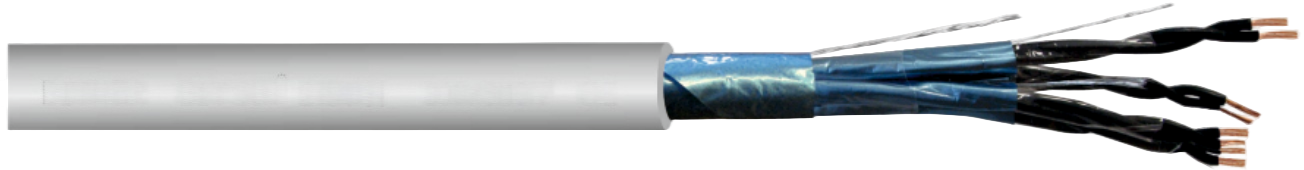

Halogen-Free Control & Signal Cable 300/500V – Double Screened, Flame-Retardant
Flexible Double-Screened Signal Cable with High Fire Safety Performance
$10.00
Design: | |
Conductors: | bare copper conductors, multi-stranded class 5 acc. to EN 60228 |
Insulation: | special halogen-free compound |
Core identification: | black, number coded conductors |
Core arrangement: | twisted screened pairs |
Individual screen: | aluminum backed polyester tape with tinned copper drain wire underneath each pair |
Collective screen: | aluminum backed polyester tape with tinned copper drain wire |
Outer sheath: | special halogen-free compound, self-extinguishing and flame retardant (acc. to EN 60332-1-2, EN 60332-3-24, cat. C); colour: grey |
Technical data:
Thermal parameters:
Operating temperature:
fixed installation: -40 °C to 80 °C
flexible connections: -5 °C to 80 °C
Electrical parameters:
Operating voltage: U0/U = 300/500 V
Test voltage (50 Hz): 3000 V
Insulation resistance: 20 MΩ x km Mechanical parameters:
Min. bending radius:
fixed installation: 5 x Ø
flexible connections: 10 x Ø
Application:Flexible, halogen-free control cables designed for operation in control and protective devices as well as in control circuits. Double screening improves protection of transmitted signals against external electromagnetic field. Individual screening of pairs decreases signal interferences from adjacent pairs. Designed especially for installation in industrial areas with increased fire safety requirements (limited flame propagation). They are suitable for fixed installations and for flexible connections in industrial devices, technological lines and machines operating in dry and damp rooms. Insulation materials and conductor construction in BIT 500®2(St)H cable enable easy and fast connections and ensure their high durability. Cables are halogen-free, low smoke and limit significantly flame propagation. Cables classified according to EN 50575 (CPR). |
