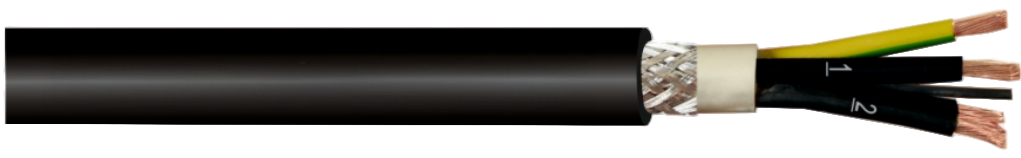

FEICHUN HCH 0.6/1kV – Durable Halogen-Free Industrial Control Cable

Flexible, Flame-Retardant Cable for Mobile Devices and EMC-Safe Installations

$3.00

Technical data:

Thermal parameters:

Operating temperature:

fixed installation: -40 °C to 80 °C

flexible connections: -5 °C to 80 °C

Electrical parameters:

Operating voltage: U0/U = 0,6/1 kV

Test voltage (50 Hz): 4000 V

Insulation resistance: 20 MΩxkm

Mechanical parameters:

Min. bending radius:

flexible connections: 10 x Ø

fixed installation: 6 x Ø

Design:

Conductors:

Insulation:

Core identification:

Core arrangement:

Inner sheath:

Screen:

Outer sheath:

bare copper conductors, multi-stranded class 5

acc. to EN 60228

special halogen-free compound

black, numbered conductors, cables with protective earth conductor marked G (e.g. 7G1,5)

cores twisted together

special halogen-free compound (single core cables without inner sheath)

tinned copper wire braid with coverage ≥85%

special halogen-free, oil resistant (see table of chemical resistance), self-extinguishing and flame retardant

(acc. to EN 60332-1-2, EN 60332-3-24, cat. C), LOI>29; colour: black

Application:FEICHUN HCH cables are designed for connections in control and signalling circuits, as power supply cables for mobile and portable devices in places exposed to vibrations. Insulation compounds and construction of FEICHUN HCH cable enable easy and fast connections and ensure their high durability. They are suitable for fixed installations and for flexible connections in industrial devices, technological lines and machines operating in dry and damp rooms, especially in applications in places with increased fire safety requirements ((limited flame propagation and no emission of corrosive gases under fire conditions)). Properly connected screen ensures full electromagnetic compatibility (EMC). Cables classified according to EN 50575 (CPR).
