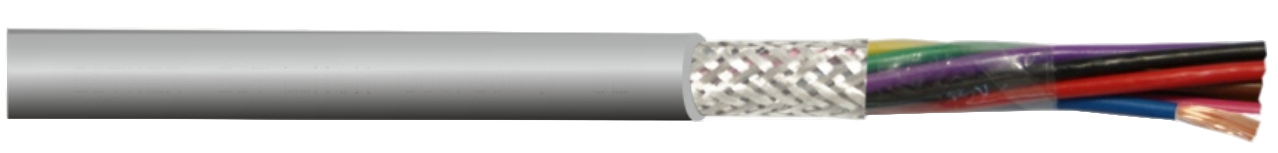

FEICHUN LiHCH Flexible Halogen-Free Control Cable 300/300V
Screened Multi-Core Cable for Industrial Control, Signalling, and Analogue/Digital Signal Transmission
$4.00
Technical data:
Thermal parameters
Operating temperature:
fixed installation: -40 °C to 80 °C
flexible connections: -5 °C to 80 °C
Electrical parameters:
Operating voltage: U0/U = 300/300 V
Test voltage: 1500 V
Insulation resistance: 20 MΩ x km
Approximate capacitance (at 800 Hz):
Core/core - 150 pF/m
Core/screen - 270 pF/m
Approximate inductance: 0,65 mH/km
Mechanical parameters:
Min. bending radius:
flexible connections: 10 x Ø
fixed installation: 5 x Ø
Design: | |
Conductors: Insulation: Core identification: Core arrangement: Screen: Outer sheath: | bare copper conductors, multi-stranded class 5 acc. to EN 60228 special halogen-free compound colours as per DIN 47100 cores twisted together or pairs twisted together tinned copper wire braid with coverage of ≥85% special halogen-free compound, self-extinguishing and highly flame retardant with LOI>29 (as per EN 60332-1-2, EN 60332-3-24 cat. C); colour: grey, on customer's request black |
Application:The cables are intended for signalling control circuits, control circuits in industrial applications, in measurement technology, for analogue and digital signals transmission in electronic industrial and automatic control engineering systems, for fixed installations and mobile/portable devices. Suitable for use indoors, in both dry and damp rooms. A common screen of tinned copper wire braid ensures very good protection against external electromagnetic fields (approximately 50 dB). Cables classified according to EN 50575 (CPR). |
